Plasma Cloud PS8-L 55W PoE Cloud Managed Network Switch

SKU: PS8-L

£138.00 £165.60 inc. VAT

Power Cable

Select Quantity:

In Stock

Tags: Plasma Cloud, PoE Switch, Network, Switch, Poe, 802.3af, 802.3at, 55W, cloud managed

Plasma Cloud PS8-L Switch Datasheet v1.1

Plasma Cloud PoE Switch PS8-L Quick Start Guide v1

Description

PS8-L PoE Switch

The PS8-L desktop switch is a compact & cost-effective solution for small offices or homes needing to power only few PoE devices. With its 8x 1 Gigabit Ethernet ports and a PoE budget of 55 W, it can comfortably power up to 3x 802.3af devices or 1x 802.3at devices at the same time. The backplane switching capacity of 16 Gbps allows to max out the Gigabit throughput on all Ethernet ports without hitting any bottleneck.

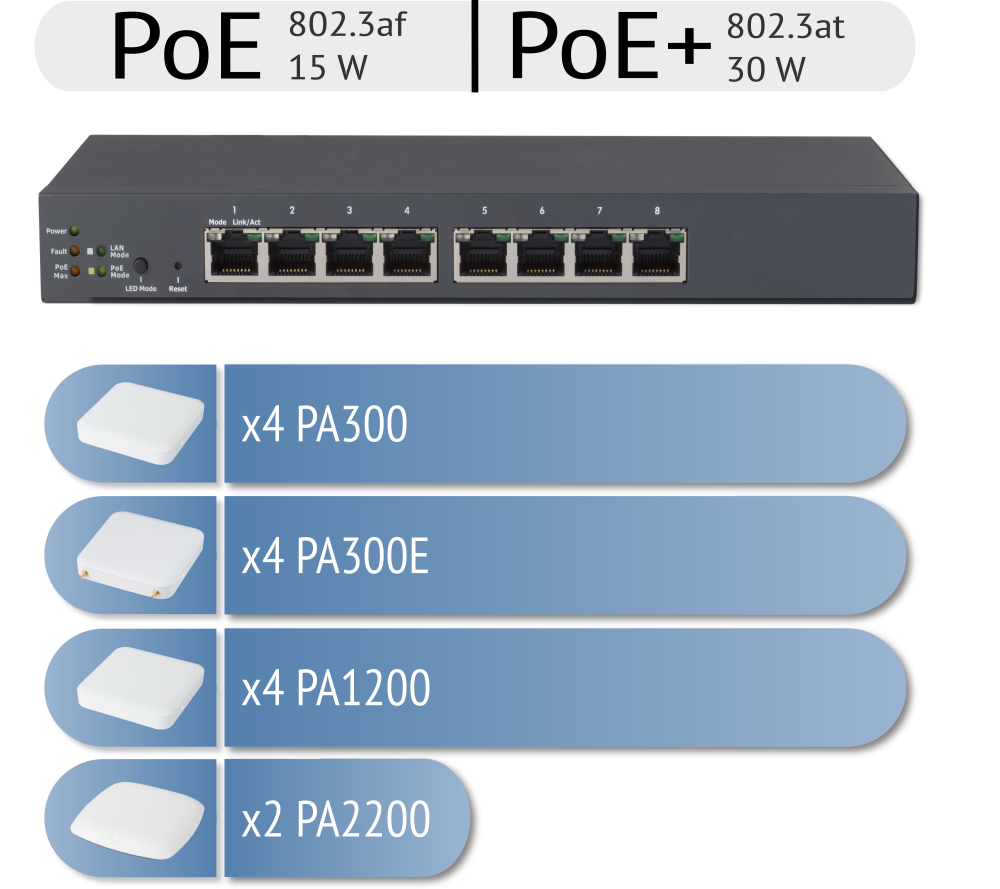

How many devices can be powered ?

Plasma Cloud switches support 802.3af and 802.3at PoE standards. Each port comes with the capability to detect the PoE standard required by the connected device. Therefore, a mix of 802.3af and 802.3at power consumers can be powered.

The amount of power supplied on each PoE port may vary greatly depending on power consumption of the connected device. To give an example: although the PA300 uses 802.3af PoE standard, its actual power consumption is 11.5 W or less (depending on system load and cable length). Consequently, a PS8-L allows to power up to 4x PA300 despite the PoE standard defining a power consumption of 15.4 W.

When the exact power consumption is not available, refer to the PoE standard (802.3af: 15.4 W, 802.3at: 30 W) to estimate the number of devices that can be powered through this PoE switch.

Mounting Options

The light-weight PS8-L is designed to be placed on a desk or shelf. The included wall mount brackets offer the possibility to mount the switch either onto a wall or tabletop.

Note: Due to its compact size, this PoE switch is not rack mountable.

Why Power over Ethernet

Power over Ethernet (PoE) allows you to combine data transfer and power supply using a single Ethernet cable which terminates in a PoE switch. Thereby, cabling effort can be reduced and power management of all connected devices greatly simplified. Combined with the powerful Plasma Cloud console, all connected devices can be centrally managed, power consumption monitored, power schedules automated and even non-Plasma Cloud devices power cycled when needed.

Almost all networking equipment today supports PoE, including WiFi Access Points, IP cameras, VoIP phones, and many more IoT devices. This allows for easy installation since PoE enables you to place devices in locations removed from power outlets (up to 100m Ethernet cable length).

Specification

Network Switch Specification
10 / 100 / 1000 Mbps Ethernet Ports	8
Memory	256 MB
Flash Memory	32 MB NOR
PoE Budget	55 W
PoE Standard	IEEE 802.3af/at
Switching Capacity	16 Gbps
Power Input	100-240VAC, 50/60Hz
Power Supply	External, 65 W
Mounting Options	Desktop, wall mount
Dimension (W x D x H)	240 x 05 x 27 mm
Weight	0.62 kg
Operating Temperature	0 C ~ 40 C (32 F ~ 104 F)
Certifications	CE, FCC, IC, RCM
L2 Features	IEEE802.3ad Link Aggregation, Port Mirroring, Port Trunking, IGMP Snooping v1/v2/v3, IGMP Fast Leave, MLD Snooping, VLAN Group, Voice VLAN, 802.1D Spanning Tree Protocol (STP), 802.1p Traffic Priority Management
Zero Config Plug-n-Play	Yes
Free Cloud Console	Yes
Free Mobile App	Yes

View compared products

Reviews

Plasma Cloud

Plasma Cloud offers affordable cloud managed WiFi Access Points and Switches in various sizes to better fit your needs and budget. Their mesh capable, remotely managed Access Points can be deployed in virtually any situation, both indoor and outdoor, thanks to a wide range of mounting options. The PA300, PA300E and PA1200 are enclosed in a IP55 certified outdoor housing which is completely dust and water resistant.

All the Plasma Cloud products come with a lifetime free cloud management system. It is engineered to be so simple that there will be no need to spend countless hours configuring your network: just plug and play! The Plasma Cloud experts focused on simplicity, speed and scalability to make sure you can enjoy a great user experience.

The Plasma Cloud marketplace is a novel 'service store in the cloud'. It offers a wide range of enterprise-level features from third party providers at a cost-effective price. By subscribing to a third party offering, you can easily extend the functionality of your devices and cater towards use cases you haven't yet imagined.
