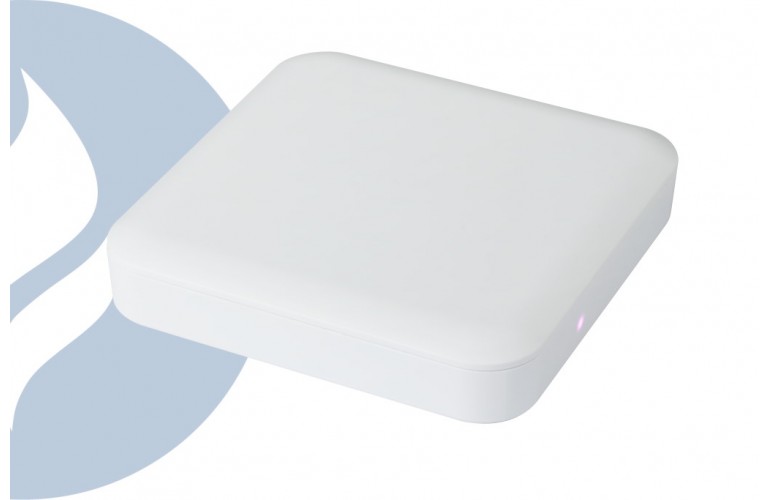

Plasma Cloud PA1200 802.11ac Dual-Band Cloud Managed Wireless Mesh Access Point
SKU: PA1200

Plasma Cloud PA1200 802.11ac Dual-Band Cloud Managed Wireless Mesh Access Point

SKU: PA1200
£149.70 £179.64 inc. VAT
In Stock
Tags: Plasma Cloud, Access Point, Wireless, Cloud Managed, 2.4GHz, 5GHz, Dual band, PA1200
Plasma Cloud PA1200 Access Point Datasheet V1.2
Plasma Cloud PA1200 Access Point - Quick Start Guide v1.2


Plasma Cloud’s universal solution for almost any setup. With dual band & dual stream 802.11ac WiFi in a compact weather resistant housing the PA1200 may serve as office or hotel WiFi backbone, coffee shop hotspot and outdoor WiFi extension.

Power over Ethernet (PoE)

Power over Ethernet (PoE) allows to supply a device with power and data over a single Ethernet cable connection. This reduces installation cost and effort for locations without available power lines. Furthermore, when connected to a Plasma Cloud PoE switch, PoE allows to centrally manage & monitor the power supply.

Ethernet Ports

The 2 provided Ethernet ports allow for maximum flexibility: one port can be used as wired uplink while the other port serves as LAN access for other wired devices. Each Ethernet port comes with a smart uplink detection to automatically determine whether a port should be an uplink or provide LAN access.

Mounting Options

Regardless of where you want to install the access points – on a wall, ceiling grid, pole, outdoors – the installer kit included with every Access Point facilitates the installation. Easily pluggable mounting options have got you covered for every scenario.


Access Point Specification
Radio Chains / Streams 2.4 GHz: 2x2 5 GHz: 2x2
Antennas 2.4 GHz: 3.0 dBi 5 GHz: 5.0 dBi
Data Rates 300 Mbps + 867 Mbps
2.4GHz 2 stream, 802.11 b/g/n (max rate: 300Mbps)
5GHz 2 stream, 802.11 a/b/g/n/ac (max rate: 867 Mbps) Wave 2, MU-MIMO
Processor Qualcomm Dakota IPQ4018
Memory 256 MB DRAM DDR3
Max Recommended Clients 50-100
Physical Interface 2 x 1000Mbps Ethernet ports 1 x USB
PoE 802.3af / 802.3at
DC Jack 12/24V / 1A
Power Consumption Min: 6W Max: 10W (without USB loading)
Indoor / Outdoor Rating CE marked for indoor/outdoor use, IP55
Dimension (W x D x H) 142 x 142 x 34 mm
Weight 500g
Operating Temperature 0 C ~ 40 C (32 F ~ 104 F)
Certifications CE, FCC, IC, RCM
Zero Config Plug-n-Play Yes
Wireless Mesh Yes
Free Cloud Console Yes
Free Mobile App Yes
