Plasma Cloud PSX8 130W PoE Network Switch
SKU: PSX8

Plasma Cloud PSX8 130W PoE Network Switch

SKU: PSX8

£295.56 £354.67 inc. VAT
In Stock
Tags: Plasma Cloud, PoE Switch, Network, Switch, Poe, 802.3af, 802.3at, 130W, cloud managed, PSX8
PSX8 Datasheet

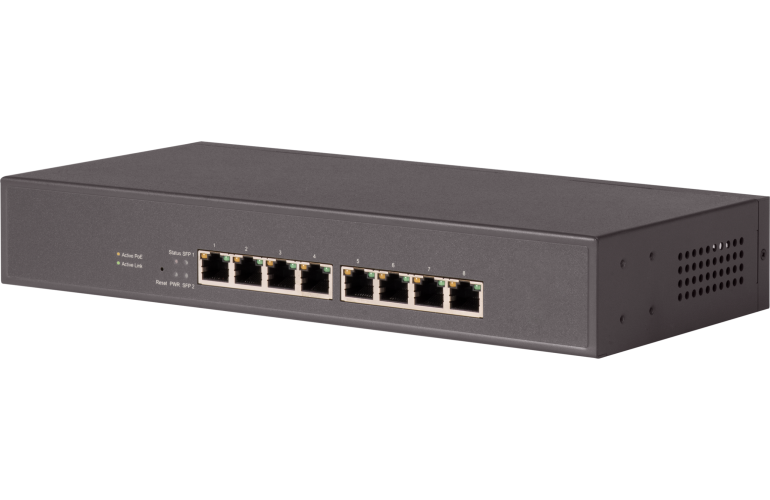

8-Port Entry-Level Multi-Gigabit Switch

The PSX8 is a compact 8-port 2.5G Ethernet Switch with PoE+ support, designed to power WiFi 6/6E Access Points, IP cameras, workstations, and IoT devices. With multi-gigabit data transfer and a fanless, silent design, it’s ideal for small to medium-sized networks in noise-sensitive environments like offices, classrooms, or retail spaces


Power over Ethernet (PoE)

Power over Ethernet (PoE) supplies power and data over a single Ethernet cable connection. This reduces installation cost and effort for locations without available power lines. The PSX8 Switch offers versatile PoE and PoE+ (802.3af/at) support, providing up to 30W per port to power a wide range of devices. PoE also enables centralized management and monitoring of the power supply for devices connected to Plasma Cloud PoE Switches.





Mounting Options

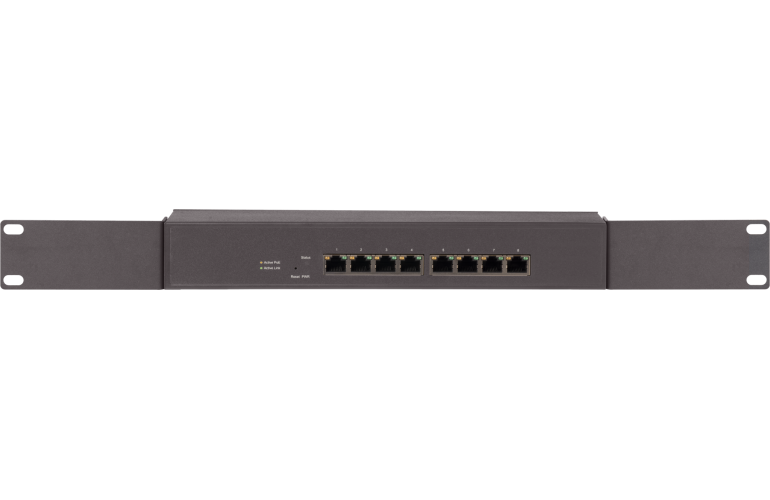

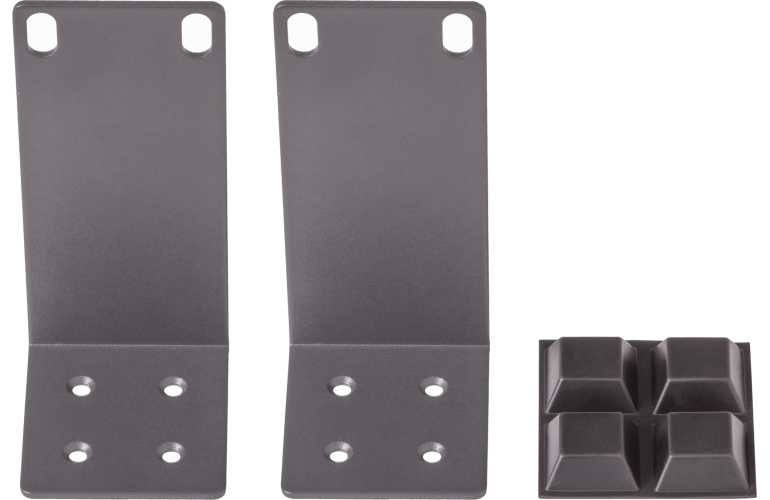

The Plasma Cloud PSX8 Switch can be securely mounted to standard 19" racks, or walls using the included brackets, ensuring stability and proper placement within a network environment. Alternatively, the PSX8 Switch can be placed on a desk by attaching the provided rubber feet to the bottom of the device for stable, non-slip support.




How many Devices can be powered?

The number of devices that can be powered simultaneously depends on the maximum power consumption of each device. If the exact value is unknown, it can be estimated using the PoE standard. Based on maximum power consumption, the PSX8 can support the following number of Plasma Cloud WiFi Access Points:




Network Switch Specification
Memory 256 MB RAM
Flash Memory 32 MB NOR
PoE Budget 130W
PoE Standard IEEE 802.3af/at
Switching Capacity 40 Gbps
Fan Fanless (passive cooling)
Power Input 54 V / 2.77 A
Power Supply Extrenal
Mounting Options Desktop, rack mount, wall mount
Dimension (W x D x H) 280 x 125 x 43.5mm
Weight 1.34 kg
Operating Temperature 0 ~ 50°C (32 ~ 104°F)
Certifications CE, FCC, IC, RCM, NZ
Zero Config Plug-n-Play Yes
Free Cloud Console Yes
Free Mobile App Yes
Product Specification

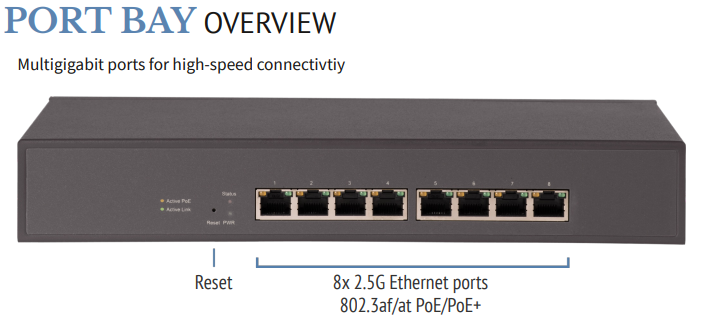

Ethernet Ports 8x 2.5 Gbps (RJ45)
