> Plasma Cloud PAX5400 Tri-band Wi-Fi 6E Cloud Managed Access Point

Plasma Cloud PAX5400 Tri-band Wi-Fi 6E Cloud Managed Access Point

SKU: PAX5400

Plasma Cloud PAX5400 Tri-band Wi-Fi 6E Cloud Managed Access Point

SKU: PAX5400

£280.00 £336.00 inc. VAT

Power

Select Quantity:

In Stock

Tags: Plasma Cloud, wireless, access, point, PAX5400, WIFI6E, 6GHz

Plasma Cloud PAX5400 Access Point Datasheet

Quick Start Guide

Description

Plasma Cloud PAX5400

	2.4GHz, 5GHz and 6GHz 802.11ax concurrent Wi-Fi
	Zero Config Plug-n-Play
	Free cloud-based web console for complete management
	Water and dust resistant with an ip55 rating
	Universal installation kit included

Tri-Band Wi-Fi 6E / 11AX Access Point

This tri-band Wi-Fi 6E / 802.11ax Access Point provides multi-gigabit Wi-Fi for venues with superb capacity and bandwidth requirements. The powerful 2.4 GHz, 5 GHz and 6 GHz Wi-Fi radios render it ideal for high-end home, education and office networks with max-throughput and high-density demands.

Power over Ethernet (PoE)

Power over Ethernet (PoE) allows the PAX5400 to be supplied with power and data over a single Ethernet cable connection. This reduces installation cost and effort for locations without available power lines. Furthermore, when connected to a Plasma Cloud PoE switch, PoE allows to centrally manage and monitor the power supply.

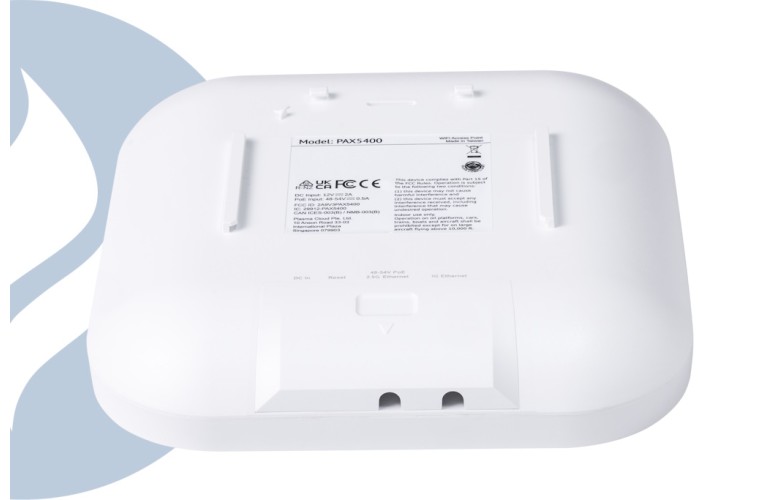

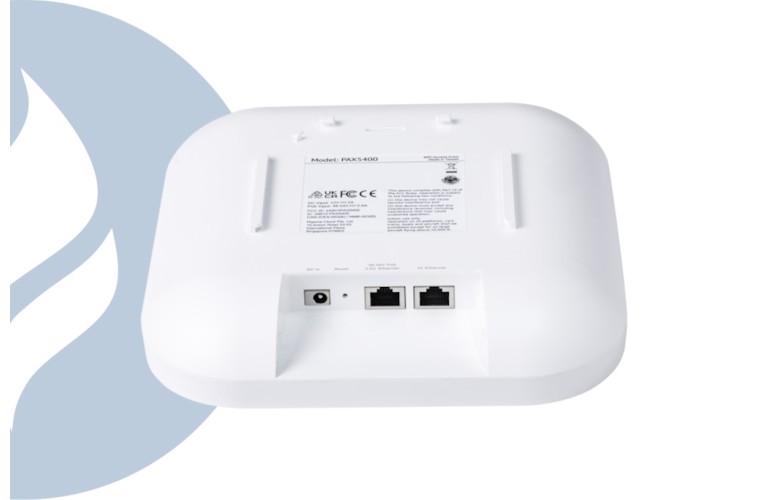

Ethernet Ports

In order to benefit from the exceptional Wi-Fi throughput, the PAX5400 is equipped with a single 2.5 GE port and a secondary 1 GE port. The 2.5 GE port is the ideal uplink as it provides the capacity to deliver multi-gigabit Wi-Fi to your wired network. It should be noted that a 2.5 GE capable infrastructure (including cables and switches) all the way to your internet connection are required to achieve maximum throughput.

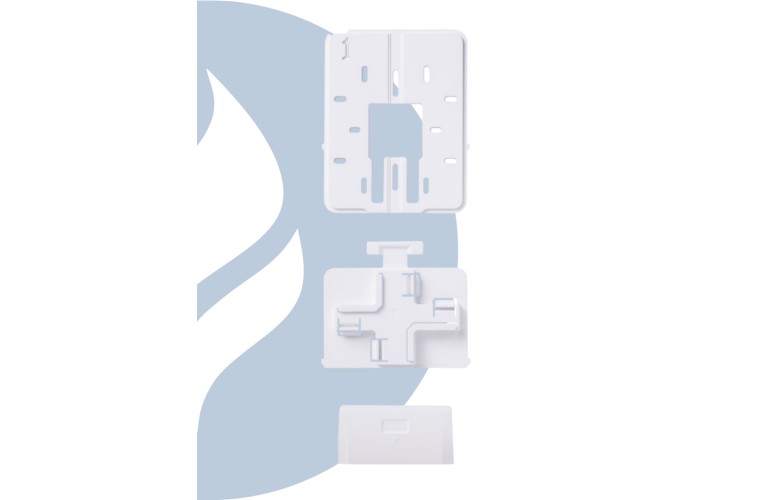

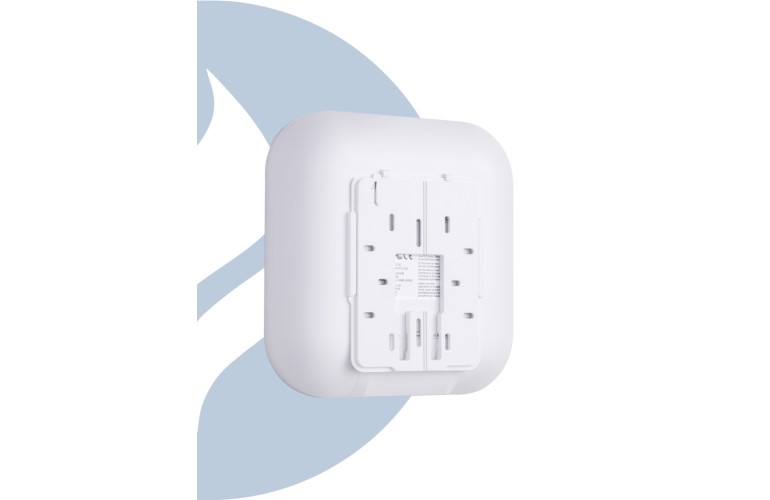

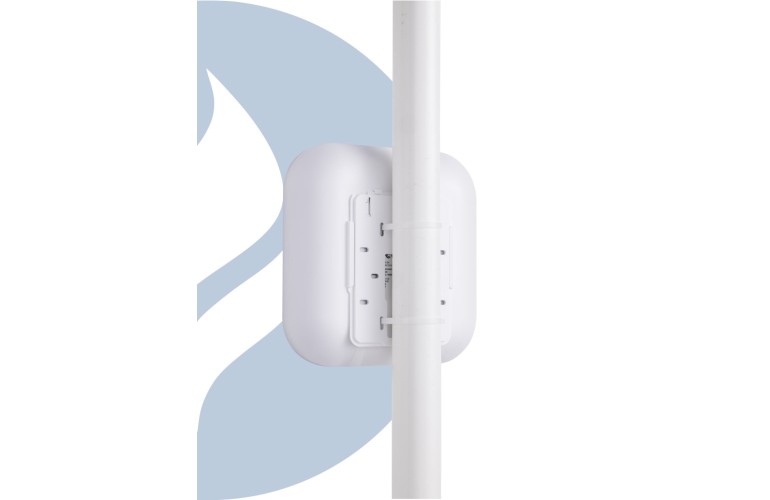

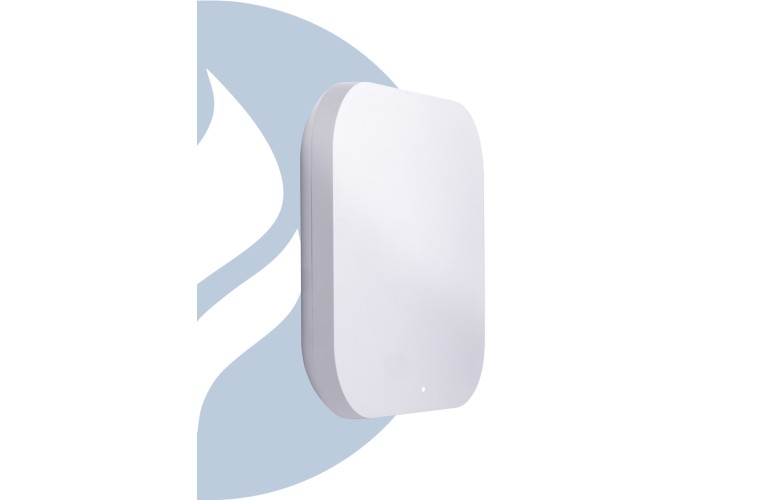

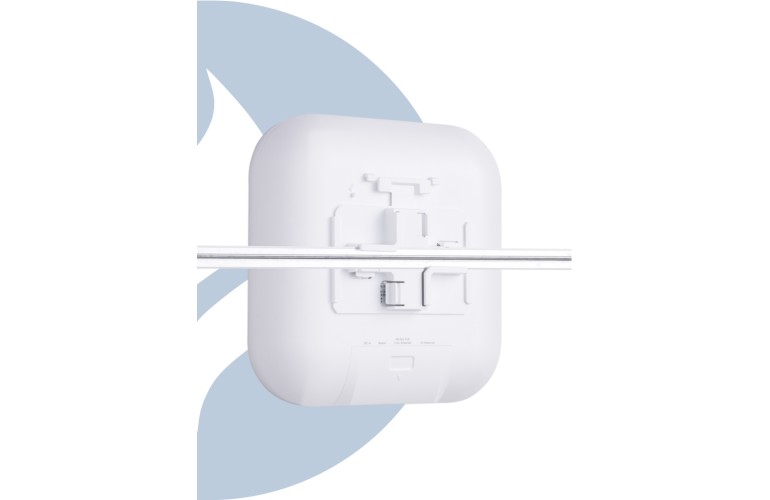

Mounting Options

Regardless of where you are planning to place your access points - on a wall, ceiling grid, pole, outdoors - the installer kit included with every access point facilitates the installation. Easily pluggable mounting options have you covered for every scenario

Mounting Options

Specification

Access Point Specification
Radio Chains / Streams	2.4GHz: 2x2 5GHz : 2x2 6GHz : 2x2
Antennas	2.4GHz : 5.0dBi 5GHz : 5.0dBi 6GHz : 5.0dBi
Data Rates	573Mbps + 2402 Mbps + 2402 Mbps
2.4GHz	2 stream, 802.11 b/g/n/ax (max rate: 574 Mbps), MU-MIMO/OFDMA
5GHz	2 stream, 802.11 a/n/ac/ax (max rate: 2402 Mbps), MU-MIMO/OFDMA
6GHz	2 stream, 802.11 a/n/ac/ax (max rate: 2402 Mbps), MU-MIMO/OFDMA
Processor	Qualcomm Maple IPQ5018
Memory	1024 MB DRAM DDR3 64 MB NOR Flash
Max Recommended Clients	300 per AP
Physical Interface	1 x 2.5 Gbps Ethernet port 1 x 1.0 Gbps Ethernet port
PoE	802.3at
DC Jack	12V / 2A
Power Consumption	Min : 5W (PoE) / 3.5W (DC) Max : 27W
Indoor / Outdoor Rating	IP55, Dust and water resistant
Dimension (W x D x H)	200 x 200 x 38 mm
Weight	760 g
Operating Temperature	0 °C ~ 40 °C (32 °F ~ 104 °F)
Certifications	CE, FCC, IC, RCM

View compared products

Reviews

Plasma Cloud

Plasma Cloud offers affordable cloud managed WiFi Access Points and Switches in various sizes to better fit your needs and budget. Their mesh capable, remotely managed Access Points can be deployed in virtually any situation, both indoor and outdoor, thanks to a wide range of mounting options. The PA300, PA300E and PA1200 are enclosed in a IP55 certified outdoor housing which is completely dust and water resistant.

All the Plasma Cloud products come with a lifetime free cloud management system. It is engineered to be so simple that there will be no need to spend countless hours configuring your network: just plug and play! The Plasma Cloud experts focused on simplicity, speed and scalability to make sure you can enjoy a great user experience.

The Plasma Cloud marketplace is a novel 'service store in the cloud'. It offers a wide range of enterprise-level features from third party providers at a cost-effective price. By subscribing to a third party offering, you can easily extend the functionality of your devices and cater towards use cases you haven't yet imagined.
