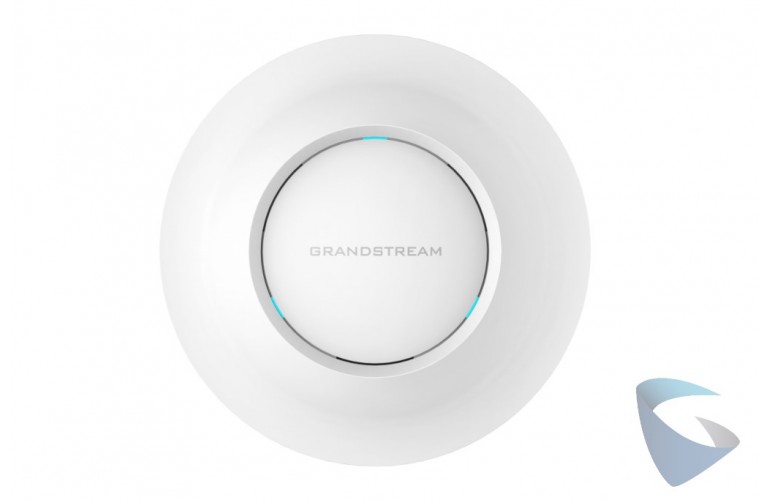

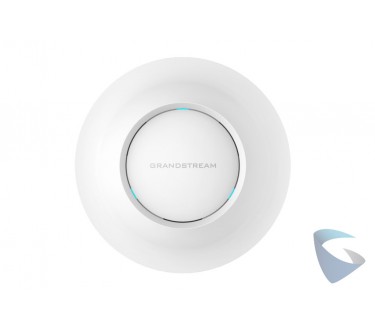

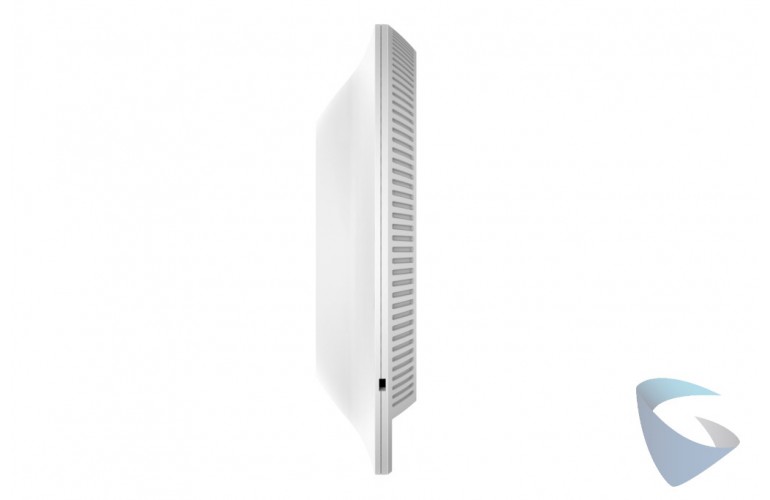

Grandstream GWN7630 WiFi 5 802.11ac Wave 2 4x4:4 Enterprise Wireless Access Point
SKU: GWN7630

Grandstream GWN7630 WiFi 5 802.11ac Wave 2 4x4:4 Enterprise Wireless Access Point

SKU: GWN7630
£88.00 £105.60 inc. VAT
In Stock
Tags: Grandstream, wireless access point, wifi5, 802.11ac, GWN7630,
GWN7630 Datasheet

Grandstream GWN7630 802.11ac 4x4 Wireless Access Point


The Grandstream GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 4×4:4 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.

To ensure easy installation and management, the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7630 is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform.

It is the ideal Wi-Fi AP for voice over Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones.

With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to- high user density.







Up to 175 meter

coverage range

Dual-band 4x4:4

MU-MIMO technology

Supports 200+ concurrent

client devices

Self power adaptation

upon auto-detection of PoE or PoE+


Features

  • 2.33 Gbps wireless throughput and 2 Gigabit wireline ports
  • Dual-band 4x4:4 MU-MIMO technology
  • Self power adaptation upon auto-detection of PoE or PoE+
  • Supports 200+ concurrent Wi-Fi client devices
  • Up to 175-meter coverage range
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures
  • Embedded controller can manage up to 50 local GWN series APs
Access Point Specification
Radio Chains / Streams 2.4GHz: 4x4 5GHz : 4x4
Antennas 2.4GhH : 4.0dBi 5GHz : 5.0dBi
Data Rates IEEE 802.11ac: 6.5 Mbps to 1733Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5Mbps to 600Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Max Recommended Clients 200+ Concurrent client devices

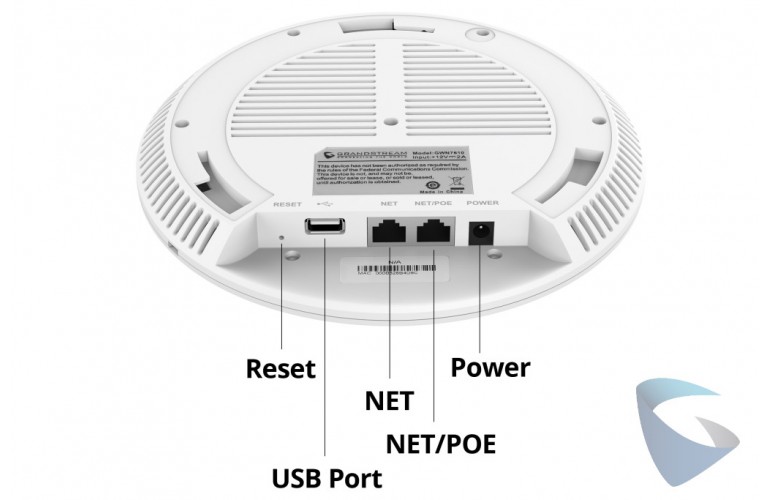

Physical Interface 2 x autosensing 1/0/100/1000 Base-T Ethernet ports
PoE 802.3af/at
Power Consumption Max : 16.5W
Indoor / Outdoor Rating Indoor use only
Dimension (W x D x H) Unit Dimension: 205.3 x 205.3 x 45.9mm Unit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm Entire Package Dimension: 258 x 247 x 86mm
Weight Unit Weight: 590g Unit + Mounting Kits Weight : 710g Entire Package Weight: 930g
Operating Temperature 0 °C ~ 40 °C
Certifications CE, FCC, IC, RCM
