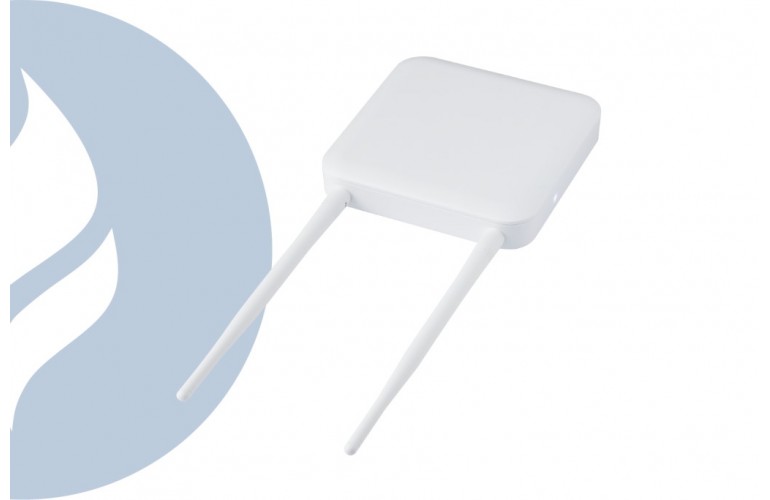

Plasma Cloud PA300E 2.4GHz Cloud Managed Wireless Mesh Access Point with Two Replaceable External Antennas
SKU: PA300E

Plasma Cloud PA300E 2.4GHz Cloud Managed Wireless Mesh Access Point with Two Replaceable External Antennas

SKU: PA300E

£94.00 £112.80 inc. VAT
In Stock
Tags: Plasma Cloud, Access Point, Wireless, Cloud Managed, 2.4GHz, PA300E, replaceable antennas
Plasma Cloud PA300E Access Point Datasheet v1.2
Plasma Cloud PA300E Access Point - Quick Start Guide v1.2

Plasma Cloud PA300E



Plasma Cloud launched a program granting one additional Plasma Cloud licence for third-party devices (such as Open Mesh) for each Plasma Cloud device bought. This means that you will be able to migrate one of your current Open Mesh devices (please consult this article for the list of supported devices) to Plasma Cloud for each Plasma Cloud device purchased. Of course, please consider that if your Plasma Cloud devices order is cancelled the extra licence will also become invalid.



PA300E

Plasma Cloud’s low cost solution providing single band dual stream 2.4GHz 802.11n WiFi in a weather resistant housing. Your best choice if the budget is a concern or for large WiFi sensor deployments.

Power over Ethernet (PoE)

Power over Ethernet (PoE) allows to supply a device with power and data over a single Ethernet cable connection. This reduces installation cost and effort for locations without available power lines. Furthermore, when connected to a Plasma Cloud PoE switch, PoE allows to centrally manage & monitor the power supply.

Ethernet Ports

The 2 provided Ethernet ports allow for maximum flexibility: one port can be used as wired uplink while the other port serves as LAN access for other wired devices. Each Ethernet port comes with a smart uplink detection to automatically determine whether a port should be an uplink or provide LAN access.

Mounting Options

Regardless of where you want to install the access points – on a wall, ceiling grid, pole, outdoors – the installer kit included with every Access Point facilitates the installation. Easily pluggable mounting options have got you covered for every scenario.



Key features:

  • 2.4 GHz 802.11n WiFi
  • Two external antennas
  • Zero config, plug-and-play networking
  • Free cloud-based web console for complete management
  • Water and dust resistant with an IP55 rating
  • Universal installation kit included




Access Point Specification
Radio Chains / Streams 2.4 GHz: 2x2
Antennas 2.4 GHz: 3.0 dBi
Data Rates 300 Mbps
2.4GHz 2 stream, 802.11 b/g/n (max rate: 300 Mbps)
Processor Qualcomm Honeybee QCA9531
Memory 64 MB
Max Recommended Clients 50
Physical Interface 2 x 100 Mbps Ethernet ports
PoE 24V passive PoE 802.3af / 802.3at
DC Jack 12-24V / 1A
Power Consumption Min: 3W Max: 9W
Indoor / Outdoor Rating CE marked for indoor / outdoor use, IP55
Dimension (W x D x H) 142 x 142 x 34 mm
Weight 470g
Operating Temperature 0 C ~ 40 C (32 F ~ 104 F)
Certifications CE, FCC, IC, RCM
Zero Config Plug-n-Play Yes
Wireless Mesh Yes
Free Cloud Console Yes
Free Mobile App Yes
