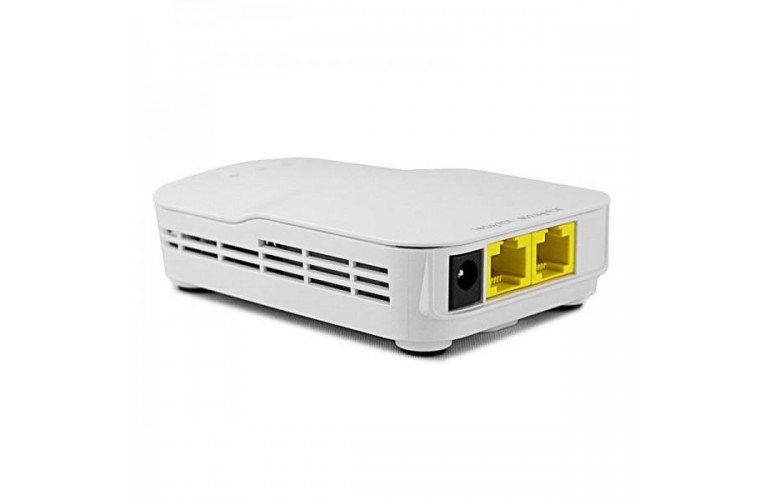

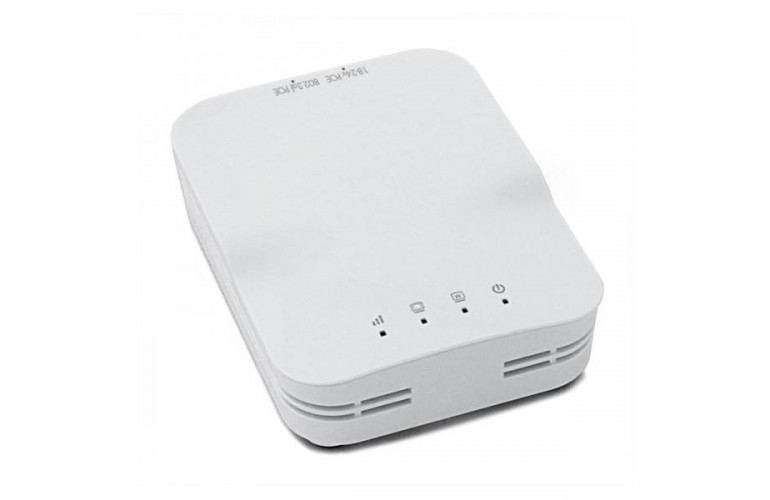

Open Mesh OM2P-HS 802.11g/n 300Mbps Access Point

THE OM2P-HS:HIGH POWER.

TINY FOOTPRINT.

The OM2P-HS 802.11n wireless mesh access point is ideally suited for providing robust internet coverage just about anywhere you need to share a connection. Examples include hotels, apartments, neighborhoods, coffee shops, shopping malls, campgrounds, and marinas.

For version 2, we've improved the OM2P-HS with the following features:

1. Dual PoE Support: Use either passive 12-24v PoE or standard 802.3af PoE as used in PoE switches.

2. High power: Doubled power to 23 dBm (200 mW) from 20 dBm (100 mW).

With 23 dBm power (200 mW) at even the highest speeds (5-8 dBi higher than most business class access points) and dual receive amplifiers, the OM2P-HS boosts incoming signals to provide exceptional range at twice the speed of the original OM2P. Since its dual antennas are internal (same 2 dBi gain as the OM2P), it fits into housings the OM2P can't, like the Ceiling and Ethernet Wall Jack enclosures. Even the outdoor enclosure is a cleaner, more sealed installation as the antenna doesn't protrude outside the housing.

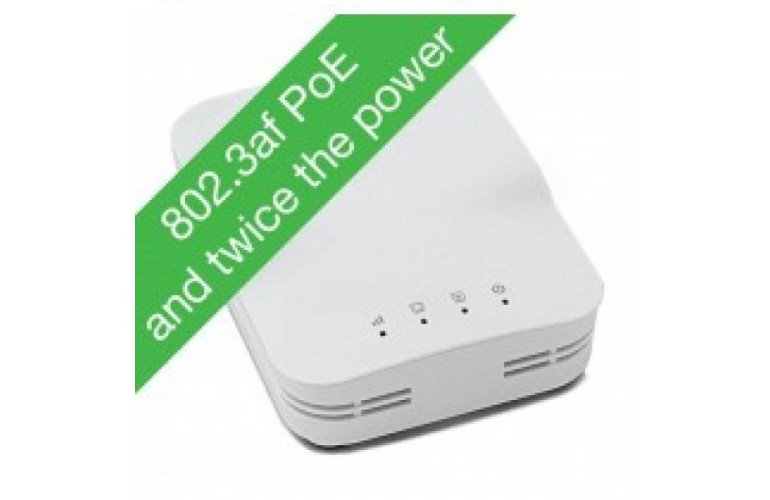

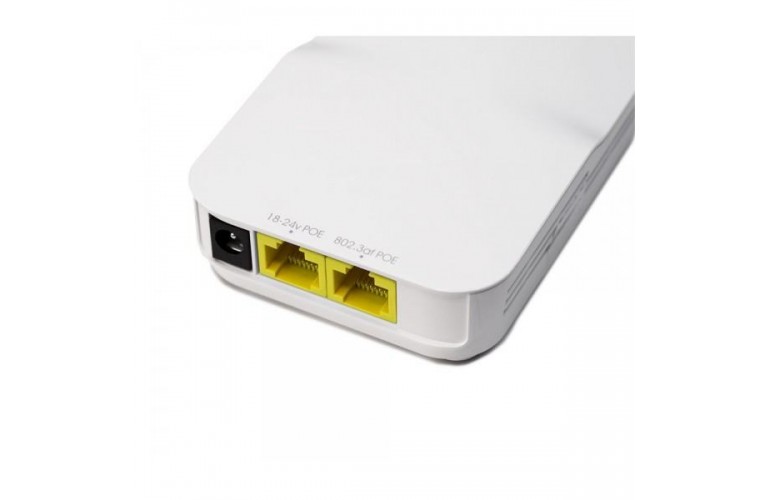

The OM2P-HS is compatible with both passive 12-24v PoE and standard 802.3af PoE, so these access points can be powered with either Open Mesh's line of passive PoE injectors or standard PoE switches.
