Plasma Cloud PA2200 Tri-band Access Point
SKU: PA2200

Plasma Cloud PA2200 Tri-band Access Point

SKU: PA2200
£181.95 £218.34 inc. VAT
In Stock
Tags: Plasma Cloud, PA2200, Tri-band, Cloud Managed, 2.4GHz, 5GHz
Case Study - Cloudlink for Westport Woods Hotel and Spa
Plasma Cloud PA2200 Access Point Datasheet v1.2
Plasma Cloud PA2200 Access Point - Quick Start Guide v1.2

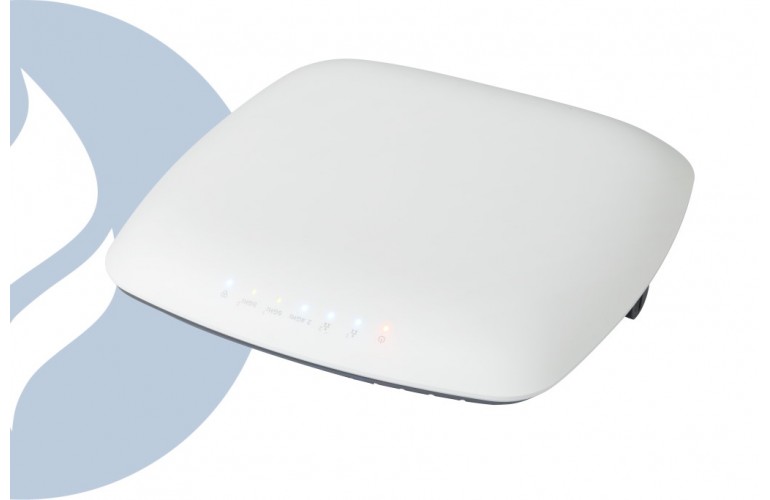

Plasma Cloud PA2200


Plasma Cloud’s response to high performance requirements. This tri-band (1x 2.4GHz & 2x 5GHz) 802.11ac WiFi Access Point offers maximum throughput by leveraging the full WiFi spectrum concurrently. The PA2200 shines best in high density and high throughput demand scenarios.

Power over Ethernet (PoE)

Power over Ethernet (PoE) allows to supply a device with power and data over a single Ethernet cable connection. This reduces installation cost and effort for locations without available power lines. Furthermore, when connected to a Plasma Cloud PoE switch, PoE allows to centrally manage & monitor the power supply.

Ethernet Ports

The 2 provided Ethernet ports allow for maximum flexibility: one port can be used as wired uplink while the other port serves as LAN access for other wired devices. Each Ethernet port comes with a smart uplink detection to automatically determine whether a port should be an uplink or provide LAN access.

Regardless where to place the access points – on a wall or ceiling grid – the installer kit included with every AccessPoint facilitates the installation. Easily pluggable mounting options got you covered for every scenario.


Key features:

  • 1x 2.4 GHz 802.11n and 2x 5 GHz 802.11ac Wave 2 concurrent WiFi
  • Zero config, plug-and-play networking
  • Free cloud-based web console for complete management
  • Universal installation kit included


Access Point Specification
Radio Chains / Streams 2.4GHz: 2x2 5GHz: 2x2 + 2x2
Antennas 2.4Ghz: 5.0 dBi 5GHz: 5.0 dBi
Data Rates 300 Mbps + 867 Mbps + 867 Mbps
2.4GHz 2 stream, 802.11 b/g/n (max rate: 300 Mbps)
5GHz 2 stream, 802.11 a/b/g/n/ac (max rate: 867 Mbps) Wave 2, MU-MIMO + 2 stream, 802.11 a/b/g/n/ac (max rate: 867 Mbps) Wave 2, MU-MIMO
Processor Qualcomm Dakota IPQ4019
Memory 256 MB DRAM DDR3
Max Recommended Clients 75-150
Physical Interface 2 x 1000Mbps Ethernet Ports
PoE 802.3at
DC Jack 12V / 2A
Power Consumption Min: 11W Max: 20W
Indoor / Outdoor Rating recommended indoor device
Dimension (W x D x H) 200 x 200 x 45 mm
Weight 902g
Operating Temperature 0 C ~ 40 C (32 F ~ 104 F)
Certifications CE, FCC, IC, RCM
Zero Config Plug-n-Play Yes
Wireless Mesh Yes
Free Cloud Console Yes
Free Mobile App Yes
