Plasma Cloud PAX1800V2 WiFi 6 Dual Band Cloud Managed Access Point
SKU: PAX1800v2

Plasma Cloud PAX1800V2 WiFi 6 Dual Band Cloud Managed Access Point

SKU: PAX1800v2
£218.00 £261.60 inc. VAT
In Stock
Tags: Plasma Cloud, wireless, access, point, PAX1800, WIFI6, 802.11ax, WiFi 6, AX
Plasma Cloud PAX1800v2 Access Point Datasheet

Note: This latest version of the PAX1800, the v2 model, supports meshing when running the 4.x firmware.

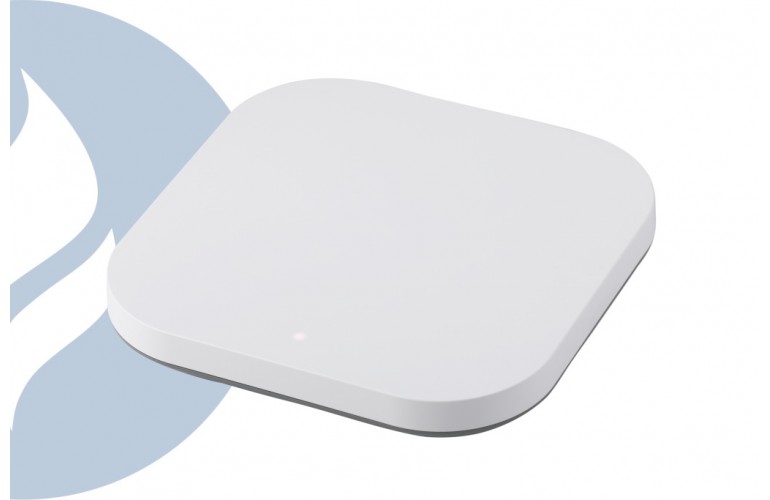

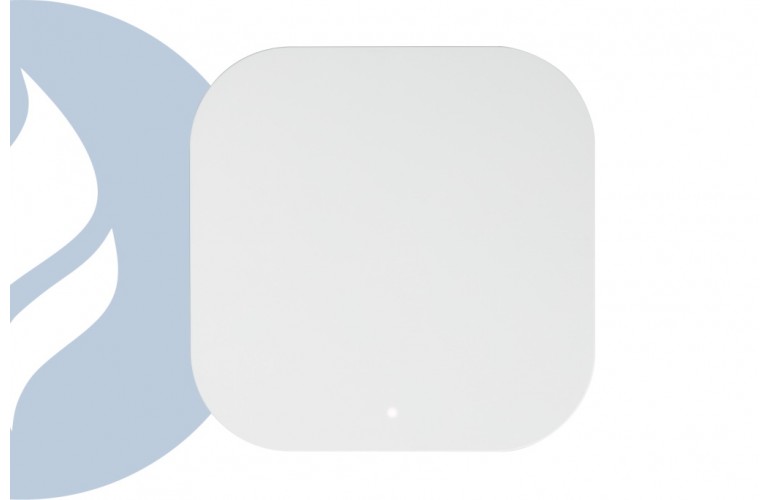

Plasma Cloud PAX1800v2

PAX1800 V2

Plasma Cloud’s WiFi 6 universal solution for almost any setup. With dual band & dual stream 802.11ax WiFi in a compact weather resistant housing the PAX1800 may serve as office or hotel WiFi backbone, coffee shop hotspot and outdoor WiFi extension. It shines in high density and high throughput demand scenarios as well, such as in schools, universities, airports and shopping malls.

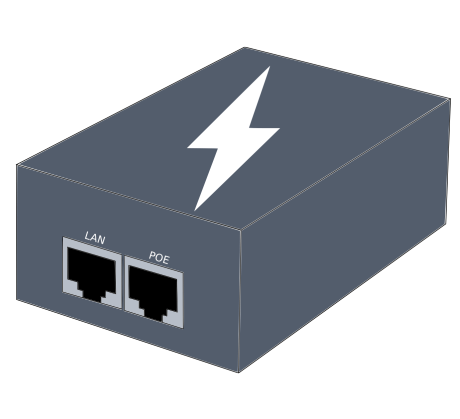

Power over Ethernet (PoE)

Power over Ethernet (PoE) allows to supply a device with power and data over a single Ethernet cable connection. This reduces installation cost and effort for locations without available power lines. Furthermore, when connected to a Plasma Cloud PoE switch, PoE allows to centrally manage & monitor the power supply.

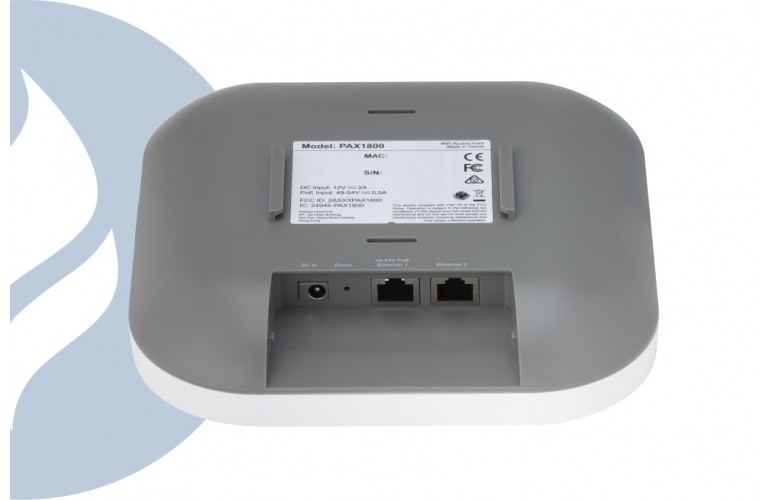

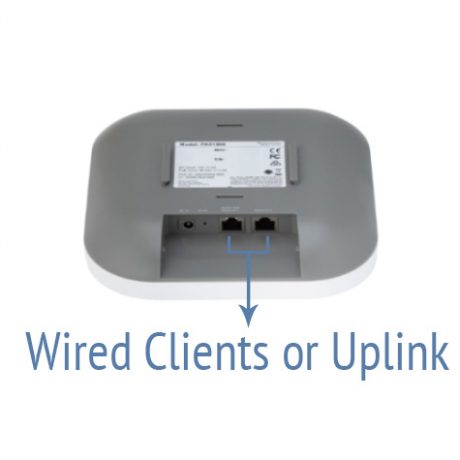

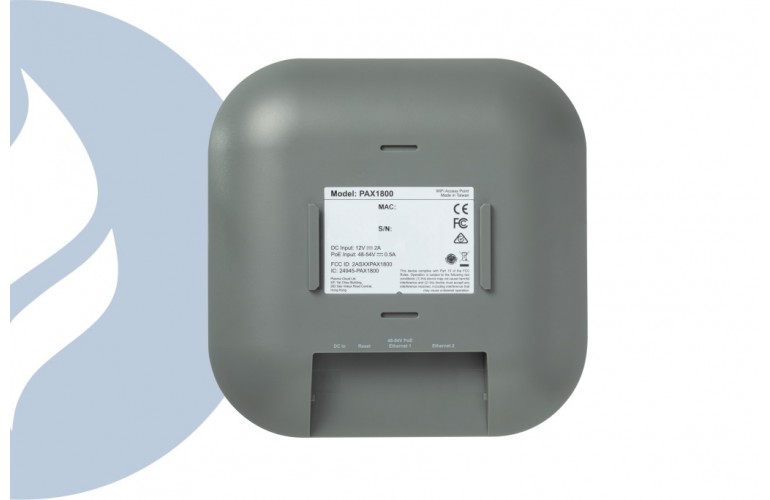

Ethernet Ports

The 2 provided Ethernet ports allow for maximum flexibility: one port can be used as wired uplink while the other port serves as LAN access for other wired devices. Each Ethernet port comes with a smart uplink detection to automatically determine whether a port should be an uplink or provide LAN access.

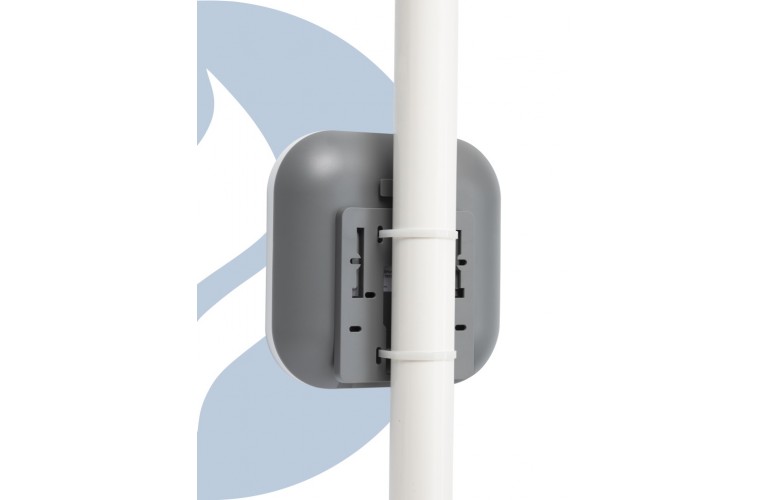

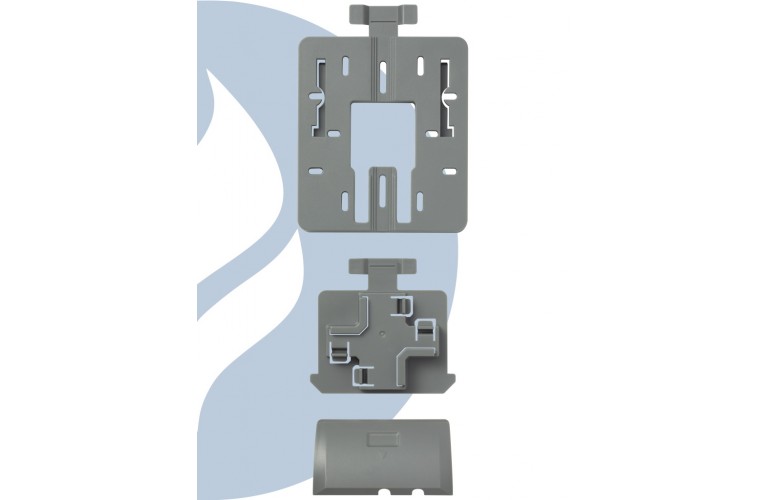

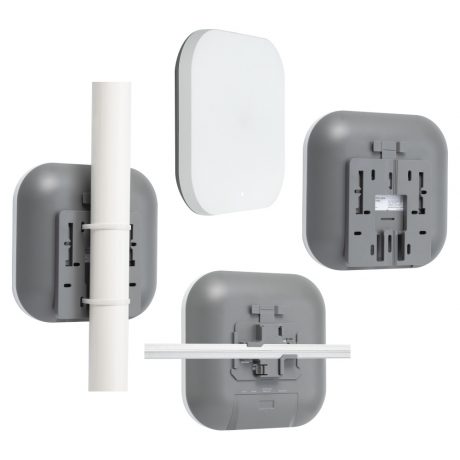

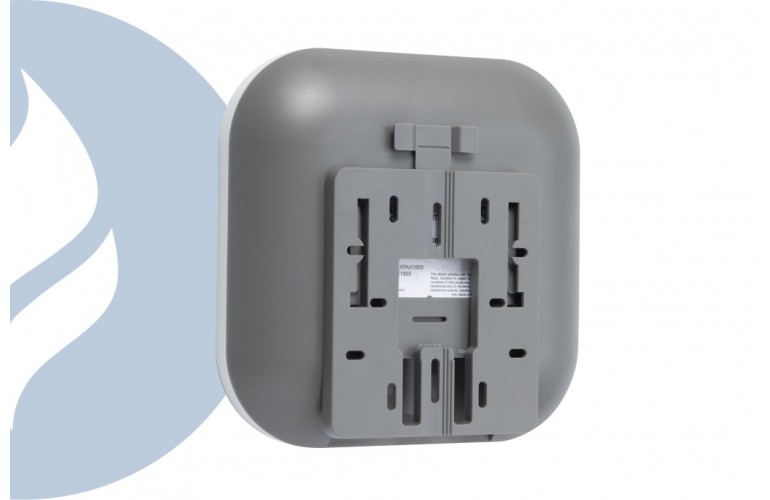

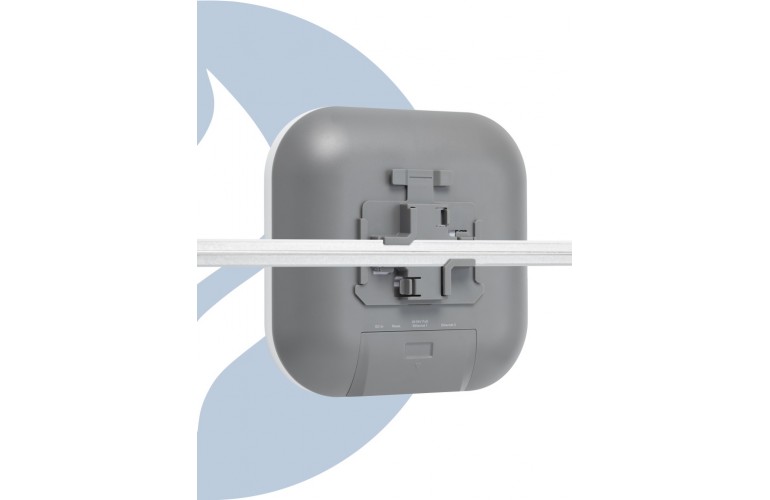

Mounting Options

Regardless of where you want to install the access points – on a wall, ceiling grid, pole, outdoors – the installer kit included with every Access Point facilitates the installation. Easily pluggable mounting options have got you covered for every scenario.


Access Point Specification
Radio Chains / Streams 2.4GHz: 2x2 5GHz : 2x2
Antennas 2.4GhH : 5.0dBi 5GHz : 5.0dBi
Data Rates 573Mbps + 1201 Mbps
2.4GHz 2 Stream, 802.11 b/g/n/ax (max rate : 574Mbps), MU-MIMO/OFDMA
5GHz 2 stream, 802.11 a/n/ac/ax (max rate : 1201 Mbps), MU-MIMO/OFDMA
Processor Qualcomm Cypress IPQ6000
Memory 512 MB DRAM DDR3 64 MB NOR Flash
Max Recommended Clients 100 - 110 per AP
Physical Interface 2x 1000 Mbps Ethernet ports
PoE 802.3at
DC Jack 12V / 2A
Power Consumption Min : 5W (PoE) / 3.5W (DC) Max : 13W
Indoor / Outdoor Rating CE marked for indoor / outdoor use, IP55
Dimension (W x D x H) 180 x 180 x 37 mm
Weight 500 g
Operating Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Certifications CE, FCC, IC, RCM
Zero Config Plug-n-Play Yes
Wireless Mesh Yes
Free Cloud Console Yes
Free Mobile App Yes
View compared products

Write a review

Please login or register to review

Plasma Cloud offers affordable cloud managed WiFi Access Points and Switches in various sizes to better fit your needs and budget. Their mesh capable, remotely managed Access Points can be deployed in virtually any situation, both indoor and outdoor, thanks to a wide range of mounting options. The PA300, PA300E and PA1200 are enclosed in a IP55 certified outdoor housing which is completely dust and water resistant.

All the Plasma Cloud products come with a lifetime free cloud management system. It is engineered to be so simple that there will be no need to spend countless hours configuring your network: just plug and play! The Plasma Cloud experts focused on simplicity, speed and scalability to make sure you can enjoy a great user experience.

The Plasma Cloud marketplace is a novel 'service store in the cloud'. It offers a wide range of enterprise-level features from third party providers at a cost-effective price. By subscribing to a third party offering, you can easily extend the functionality of your devices and cater towards use cases you haven't yet imagined.
