Plasma Cloud PA300 2.4GHz Cloud Managed Wireless Mesh Access Point

SKU: PA300

£75.40 £90.48 inc. VAT

Power

Select Quantity:

In Stock

Tags: Plasma Cloud, Access Point, Wireless, Cloud Managed, 2.4GHz, PA300

Plasma Cloud PA300 Access Point Datasheet v1.2

Plasma Cloud PA300 Access Point - Quick Start Guide v1.2

Share this item:

Description

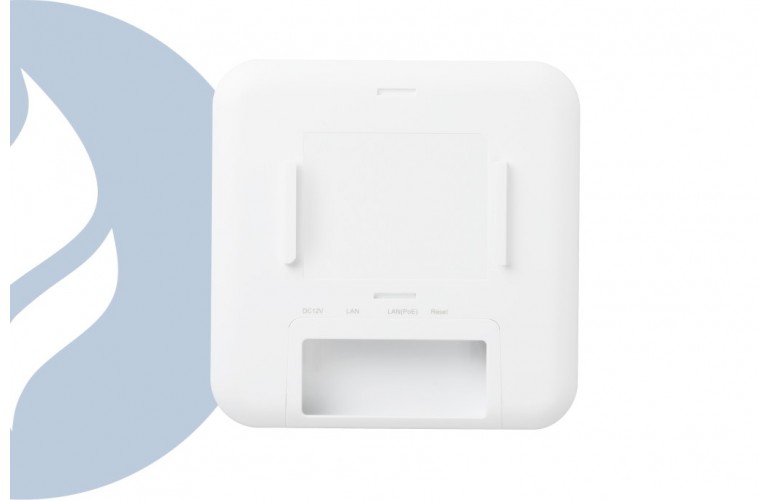

Plasma Cloud PA300

	PA300 Plasma Cloud’s low cost solution providing single band dual stream 2.4GHz 802.11n WiFi in a weather resistant housing. Your best choice if the budget is a concern or for large WiFi sensor deployments.
Power over Ethernet (PoE) Power over Ethernet (PoE) allows to supply a device with power and data over a single Ethernet cable connection. This reduces installation cost and effort for locations without available power lines. Furthermore, when connected to a Plasma Cloud PoE switch, PoE allows to centrally manage & monitor the power supply.
	Ethernet Ports The 2 provided Ethernet ports allow for maximum flexibility: one port can be used as wired uplink while the other port serves as LAN access for other wired devices. Each Ethernet port comes with a smart uplink detection to automatically determine whether a port should be an uplink or provide LAN access.
Mounting Options Regardless of where you want to install the access points – on a wall, ceiling grid, pole, outdoors – the installer kit included with every Access Point facilitates the installation. Easily pluggable mounting options have got you covered for every scenario.

Key features:

2.4 GHz 802.11n WiFi
Zero config, plug-and-play networking
Free cloud-based web console for complete management
Water and dust resistant with an IP55 rating
Universal installation kit included

Specification

Access Point Specification
Radio Chains / Streams	2.4 GHz: 2x2
Antennas	2.4 GHz: 3.0 dBi
Data Rates	300 Mbps
2.4GHz	2 streams, 802.aa b/g/n (max rate: 300Mbps)
Processor	Qualcomm Honeybee QCA9531
Memory	64 MB
Max Recommended Clients	50
Physical Interface	2 x 100Mbps Ethernet ports
PoE	24V Passive PoE 802.3af / 802.3at
DC Jack	12-24V / 1A
Power Consumption	Min: 3W Max: 9W
Indoor / Outdoor Rating	CE Marked for indoor/outdoor use, IP55
Dimension (W x D x H)	142 x 142 x 34 mm
Weight	470g
Operating Temperature	0 C ~ 40 C (32 F ~ 104 F)
Certifications	CE, FCC, IC, RCM
Zero Config Plug-n-Play	Yes
Wireless Mesh	Yes
Free Cloud Console	Yes
Free Mobile App	Yes

View compared products

Reviews

Plasma Cloud

Plasma Cloud offers affordable cloud managed WiFi Access Points and Switches in various sizes to better fit your needs and budget. Their mesh capable, remotely managed Access Points can be deployed in virtually any situation, both indoor and outdoor, thanks to a wide range of mounting options. The PA300, PA300E and PA1200 are enclosed in a IP55 certified outdoor housing which is completely dust and water resistant.

All the Plasma Cloud products come with a lifetime free cloud management system. It is engineered to be so simple that there will be no need to spend countless hours configuring your network: just plug and play! The Plasma Cloud experts focused on simplicity, speed and scalability to make sure you can enjoy a great user experience.

The Plasma Cloud marketplace is a novel 'service store in the cloud'. It offers a wide range of enterprise-level features from third party providers at a cost-effective price. By subscribing to a third party offering, you can easily extend the functionality of your devices and cater towards use cases you haven't yet imagined.
