> FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point
FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point
SKU: BUNDLE-5xPAX1800-Lite
FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point
FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point

FREE AP BUNDLE! Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point

SKU: BUNDLE-5xPAX1800-Lite

£592.00 £710.40 inc. VAT
In Stock
Tags: Plasma Cloud, wireless, access, point, PAX1800-Lite, WIFI6, 802.11ax, WiFi 6, AX, FREE AP
PAX18000-Lite Datasheet
Description

Buy 4 x PAX1800-Lite WIFI 6 access points and get a 5th PAX1800-Lite totally FREE!

Add this bundle to your shopping cart to receive 5 x PAX1800-Lite access points for the price of 4.

**PSU not included

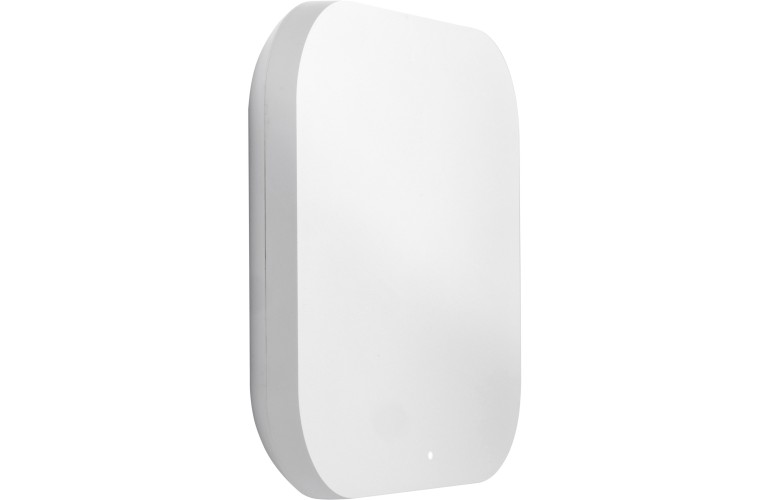

Plasma Cloud PAX1800-Lite

PAX1800-Lite

Plasma Cloud’s WiFi 6 universal solution for almost any setup. With dual band & dual stream 802.11ax WiFi in a compact weather resistant housing the PAX1800-Lite may serve as office or hotel WiFi backbone, coffee shop hotspot and outdoor WiFi extension. It shines in high density and high throughput demand scenarios as well, such as in schools, universities, airports and shopping malls.

Power over Ethernet (PoE)

Power over Ethernet (PoE) allows to supply a device with power and data over a single Ethernet cable connection. This reduces installation cost and effort for locations without available power lines. Furthermore, when connected to a Plasma Cloud PoE switch, PoE allows to centrally manage & monitor the power supply.

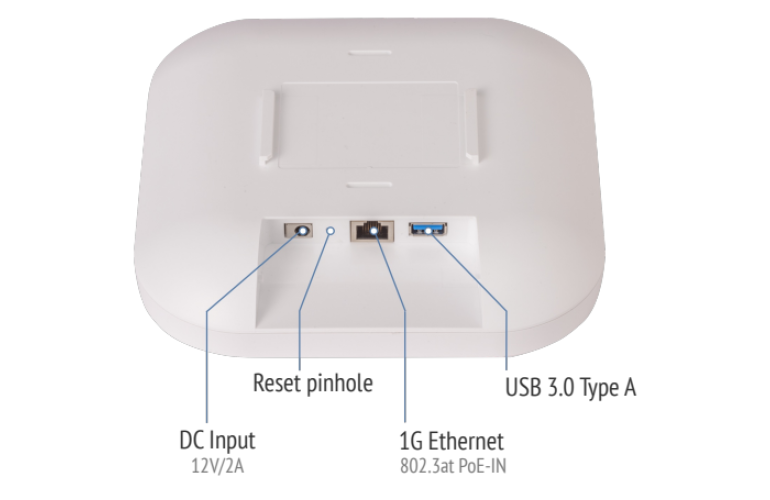

Ethernet Ports

The PAX1800-Lite features a 1G Ethernet and a USB 3.0 Type A port. The Ethernet port can be used as wired uplink, while the versatile USB port serves to connect IoT, modems or other USB devices. This multifunction port supports various wireless technologies such as Bluetooth, Zigbee, Z-Wave, LoRaWAN, LTE, and beyond—enabling integration into any smart environment.

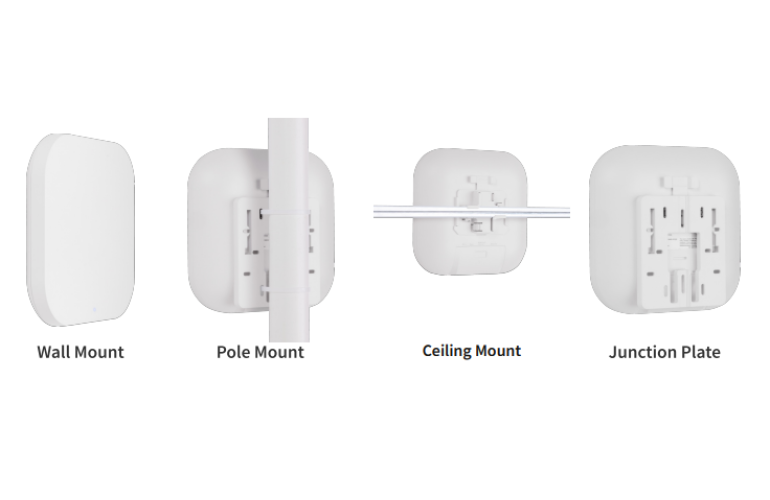

Mounting Options

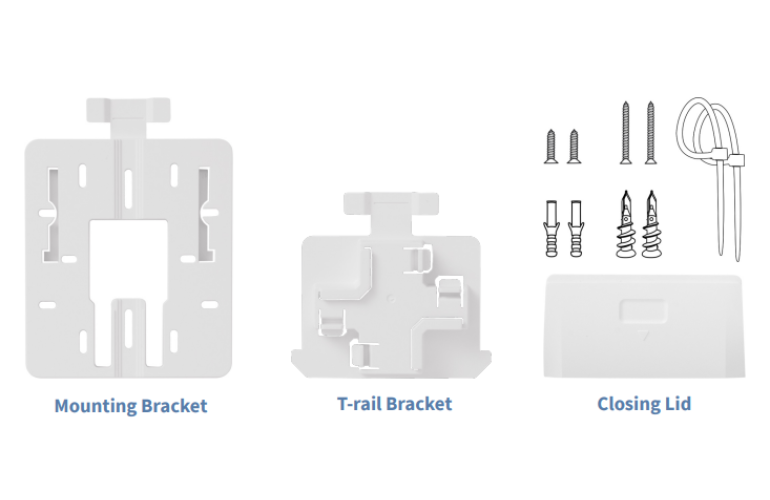

The universal mounting kit included with the Access Point enables flexible installation on walls, ceiling grids, poles, or outdoor structures. It offers secure and straightforward mounting solutions for virtually any environment.




Specification
Access Point Specification
Radio Chains / Streams 2x2 on 2.4 GHz 2x2 on 5 GHz
Antennas 3.5 dBi on 2.4 GHz 7.5 dBi on 5 GHz
Data Rates 573Mbps + 1201 Mbps
2.4GHz 2 Stream, 802.11 b/g/n/ax (max rate : 574Mbps), MU-MIMO/OFDMA
5GHz 2 stream, 802.11 a/n/ac/ax (max rate : 1201 Mbps), MU-MIMO/OFDMA
Processor Mediatek MT7621A
Memory 512 MB RAM DDR3 4 MB NOR Flash 128 MB NAND Flash
Max Recommended Clients 150 per AP
Physical Interface 1x 1.0 Gbps Ethernet port 1x USB 3.0 type-A port
PoE 802.3af/ at
DC Jack 12V / 2A
Power Consumption Min : 5W (PoE) / 3.5W (DC) Max : 19W
Indoor / Outdoor Rating Indoor / outdoor use, IP55 dust and water resistant
Dimension (W x D x H) 180 x 180 x 34 mm
Weight 500 g
Operating Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Certifications CE, FCC, IC, RCM
Zero Config Plug-n-Play Yes
Wireless Mesh Yes
Free Cloud Console Yes
Free Mobile App Yes
