Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point
SKU: PAX1800-Lite

Plasma Cloud PAX1800-Lite WiFi 6 Dual Band Cloud Managed Access Point

SKU: PAX1800-Lite

£148.00 £177.60 inc. VAT
In Stock
Tags: Plasma Cloud, wireless, access, point, PAX1800-Lite, WIFI6, 802.11ax
PAX18000-Lite Datasheet
PAX1800-Lite Quick Start Guide
PAX1800-Lite User Manual

PAX1800-Lite

Dual-band WiFi 6 (802.11ax) Access Point


Plasma Cloud’s WiFi 6 universal solution for almost any setup. With dual band & dual stream 802.11ax WiFi in a compact weather resistant housing the PAX1800-Lite may serve as office or hotel WiFi backbone, coffee shop hotspot and outdoor WiFi extension. It shines in medium density and high throughput demand scenarios such as schools, universities, airport and shopping malls.




Power Over Ethernet (PoE)

Power over Ethernet (PoE) allows the PAX1800-Lite to be supplied with power and data over a single Ethernet cable connection. This reduces installation cost and effort for locations without available power lines. Furthermore, when connected to a Plasma Cloud PoE switch, PoE allows to centrally manage & monitor the power supply.

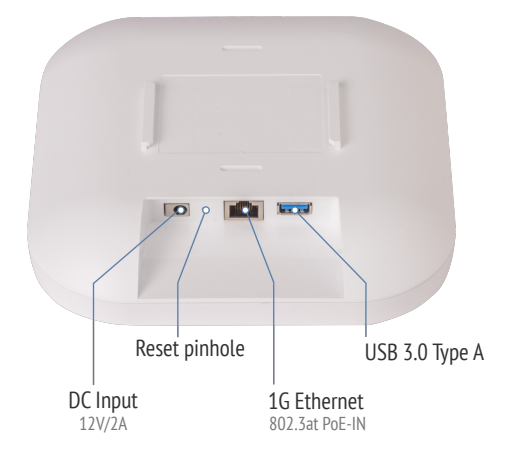

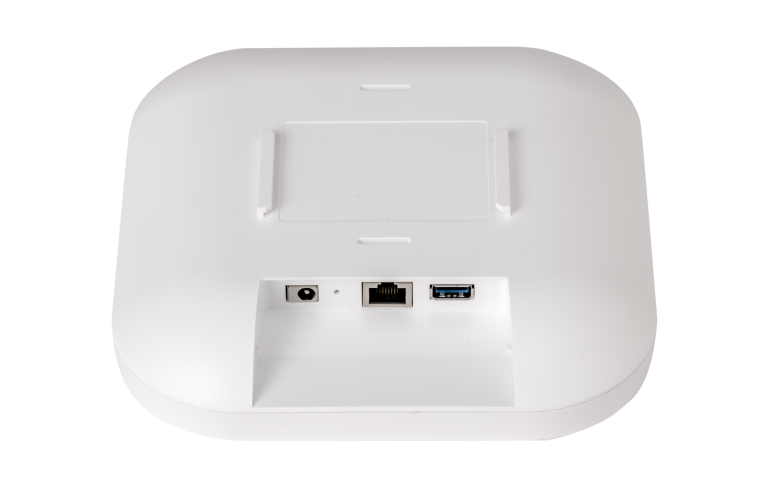

Port Bay Overview

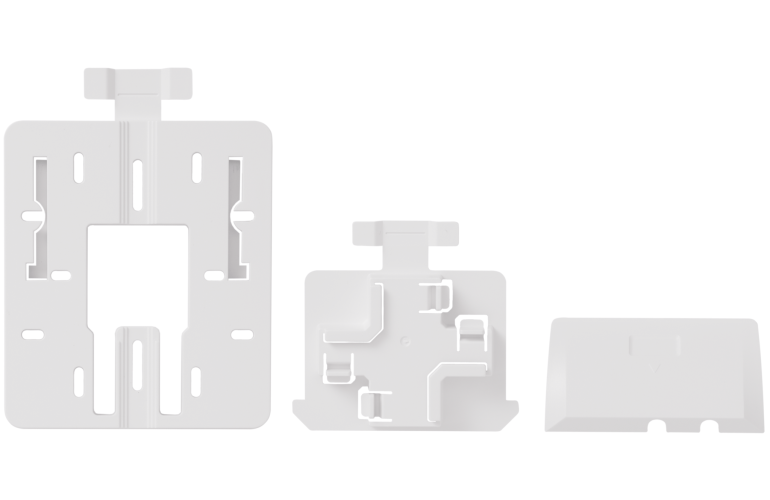

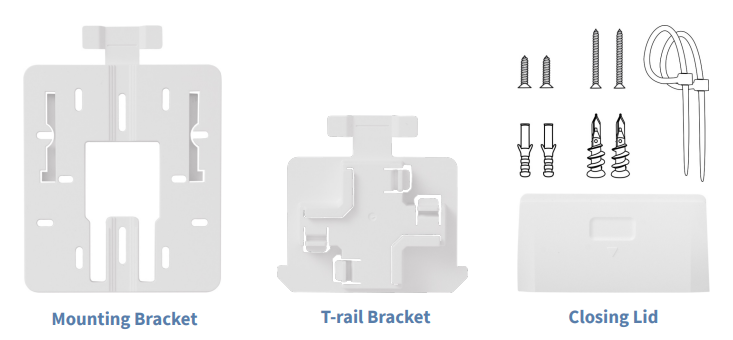

Universal Mounting Kit

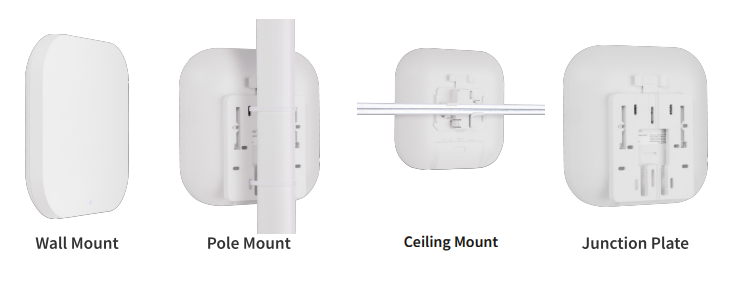

Mounting Options



Access Point Specification
Radio Chains / Streams 2.4GHz: 2x2 5GHz : 2x2
Antennas 2.4GhH : 3.5dBi 5GHz : 7.5dBi
Data Rates 573Mbps + 1201 Mbps
2.4GHz 2 Stream, 802.11 b/g/n/ax (max rate : 574Mbps), MU-MIMO/OFDMA
5GHz 2 stream, 802.11 a/n/ac/ax (max rate : 1201 Mbps), MU-MIMO/OFDMA
Processor Mediatek MT7621A
Memory 512 MB RAM DDR3 4 MB NOR Flash 128 MB NAND Flash
Max Recommended Clients 150 per AP
Physical Interface 1x 1.0 Gbps Ethernet port 1x USB 3.0 type-A port
PoE 802.3af/at
DC Jack 12V / 2A
Power Consumption Min : 5W (PoE) / 3.5W (DC) Max : 19W
Indoor / Outdoor Rating Indoor / outdoor use, IP55 dust and water resistant
Dimension (W x D x H) 180 x 180 x 34 mm
Weight 500 g
Operating Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Certifications CE, FCC, IC, RCM, NZ
Zero Config Plug-n-Play Yes
Wireless Mesh Yes
Free Cloud Console Yes
Free Mobile App Yes
