Grandstream GWN7630LR WiFi 5 802.11ac 4x4 High Performance Outdoor Long Range Wireless Access Point / Bridge
SKU: GWN7630LR

Grandstream GWN7630LR WiFi 5 802.11ac 4x4 High Performance Outdoor Long Range Wireless Access Point / Bridge

SKU: GWN7630LR
£106.00 £127.20 inc. VAT
In Stock
Tags: Grandstream, wireless access point, wifi5, 802.11ac, GWN7630LR, Outdoor, Long Range
GWN7630LR Datasheet

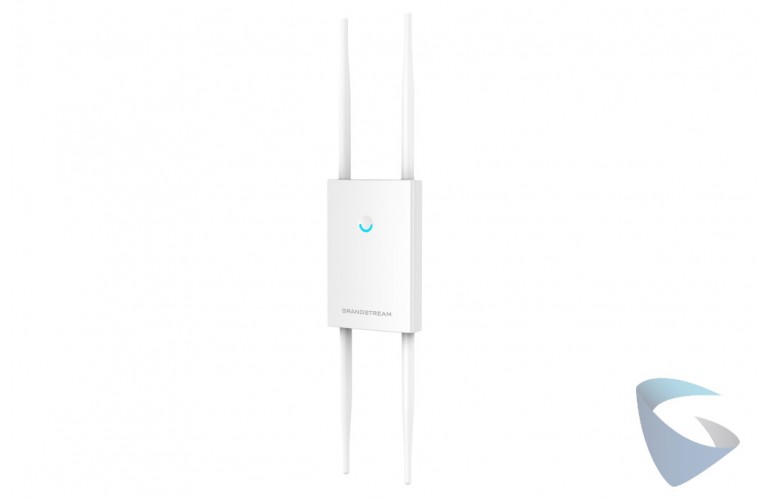

Grandstream GWN7630LR - High Performance Outdoor Long Range Wireless Access Point


The Grandstream GWN7630LR is an outdoor long-range Wi-Fi access point for medium to large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces.

It offers an IP66 level weatherproof casing and heat resistant technology, dual-band 4×4:4 MU-MIMO technology, and a sophisticated antenna design for maximum network throughput that supports 200+ clients and an expanded 300 meter coverage range.

To ensure easy installation and management, the GWN7630LR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform.The GWN7630LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.









Up to 300 meters

coverage range

Dual-band 4x4:4

MU-MIMO technology

Supports 200+ concurrent

client devices

Self power adaptation

upon auto-detection of PoE or PoE+


Features

  • Up to 300-meter coverage range
  • 2.33 Gbps wireless throughput and 2 Gigabit wireline ports
  • Dual-band 4x4:4 MU-MIMO technology
  • Self power adaptation upon auto-detection of PoE or PoE+
  • Supports 200+ concurrent Wi-Fi client devices
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures
  • Embedded controller can manage up to 50 local GWN series APs


Access Point Specification
Radio Chains / Streams 2.4GHz: 4x4:4 5GHz : 4x4:4
Antennas 2.4Ghz : 3.5dBi (detachable) 5GHz : 3.5dBi (detachable)
Data Rates EEE 802.11ac: 6.5 Mbps to 1733Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5Mbps to 600Mbps IEEE 802.11b: 1, 2, 5.5, 11Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Physical Interface 2x autosensing 10/100/1000 Base-T Ethernet ports
PoE 802.3af/at
Power Consumption Max : 16.5W
Indoor / Outdoor Rating CE marked for indoor / outdoor use, IP66 when installed vertically
Dimension (W x D x H) Unit Dimension: 533.1 × 115 × 40mm Unit + Mounting Kits Dimension : 533.1×115 ×62mm Entire Package Dimension: 258 × 247× 86mm
Weight Unit Weight: 564g Unit + Mounting Kits Weight : 706g Entire Package Weight: 978g
Operating Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Certifications CE, FCC, IC, RCM
