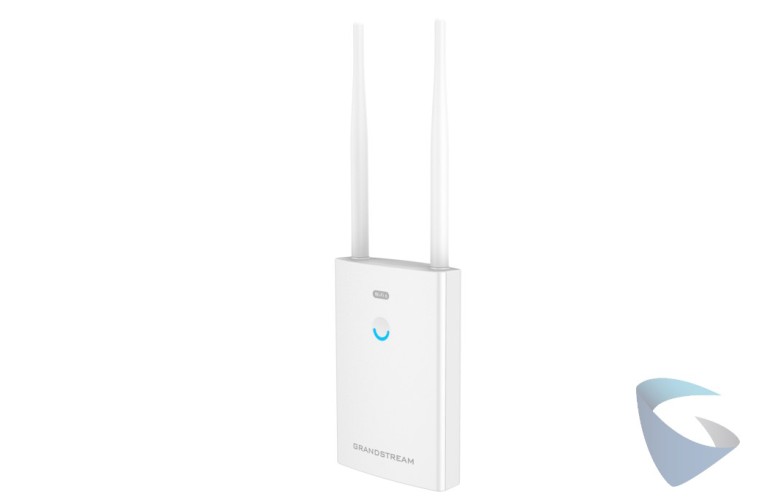

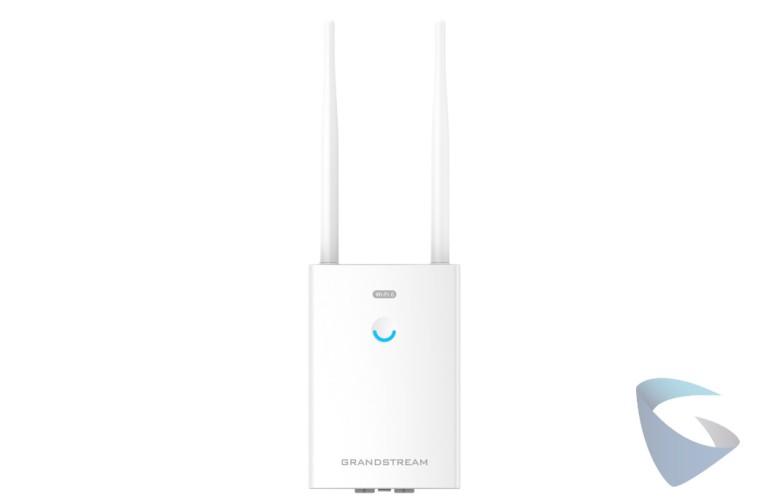

The GWN7660LR offers IP66 weatherproof certified casing, dual-band 2x2:2 MU-MIMO technology and a sophisticated antenna design for extended coverage range of up to 250 meters. The GWN7660LR is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controllerless network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7660LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+; the GWN7660LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, parks, hospitals, schools and more
Access Point Specification | |
Radio Chains / Streams | 2.4GHz: 2x2:2 5GHz : 2x2:2 |
Antennas | 2x dual band external antennas 2.4GHz, gain 3.5dBi 5 GHz, gain 3.5dBi |
Data Rates | IEEE 802.11ax: 7.3 Mbps to 1201 Mbps IEEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Physical Interface | 2× autosensing 10/100/1000 Base-T Ethernet Ports |
PoE | PoE 802.3af/ 802.3at; |
Power Consumption | Max : 12.9W |
Indoor / Outdoor Rating | IP66 weatherproof certified casing |
Dimension (W x D x H) | Unit Dimension: 358.3mm(L)x115mm(W)x45.3mm(H) Entire Package Dimension: 275x185.5x89mm |
Weight | Unit Weight: 695g Entire Package Weight: 995g |
Operating Temperature | -30°Cto 60°C |
Certifications | FCC, CE, RCM, IC |
Grandstream’s large portfolio of Wi-Fi networking products offer enterprise-grade networking, tremendous Wi-Fi coverage range, fast and easy provisioning/management, outstanding network throughput and support for a large number of clients per access point. Our APs can be paired with 3rd party routers, Grandstream routers as well as existing
Wi-Fi networks. With a whole portfolio of indoor, outdoor and long-range APs, the GWN Series provides the ideal model for every need.
