With its integrated switch you have three 100M ports able to provide IP Phones, IPTV, PC, etc. with Ethernet, and an uplink Gigabit network port with PoE/PoE+and PSE facilitates Wi-Fi networks.
|
|
|
Up to 100m coverage range |
Supports 80 concurrent WiFi client devices | Self power adaption upon auto-detection of PoE/PoE+ |
Access Point Specification | |
Radio Chains / Streams | 2.4GHz: 2x2 5GHz : 2x2 |
Antennas | Antenna 1 - 2.4Ghz : 3.0dBi, 5GHz : 3.5dBi Antenna 2 - 2.4Ghz : 3.5dBi, 5GHz : 3.0dBi |
Data Rates | IEEE 802.11ac: 6.5 Mbps to 867Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
2.4GHz | 2 Stream, 802.11 b/g/n |
5GHz | 2 stream, 802.11 a/n/ac |
Max Recommended Clients | 80 concurrent |

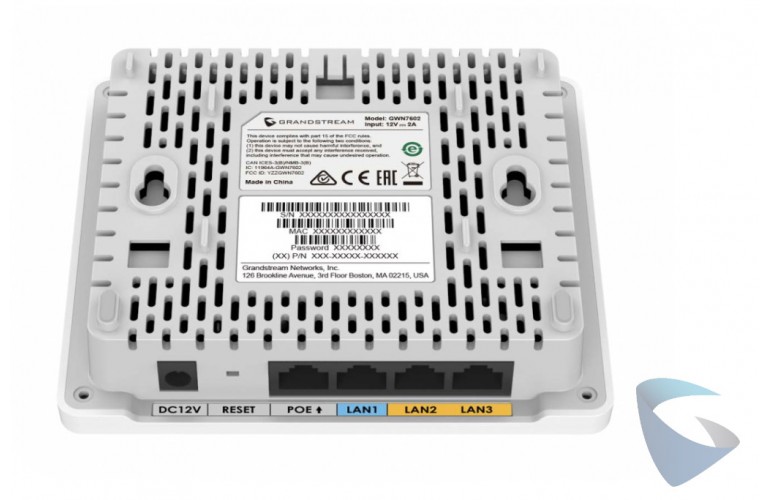

Physical Interface | 1 x 10/100/1000M uplink Ethernet port with POE/POE+ 2 x 10/100M Ethernet port with PSE 1 x 10/100M Ethernet port |
PoE | 802.3af/802.3at |
DC Jack | 12V / 2A |
Power Consumption | Max : 20W PSE Max output per port: 6W |
Indoor / Outdoor Rating | Indoor use only |
Dimension (W x D x H) | 135 x 115 x 30mm |
Weight | 188g |
Operating Temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
Certifications | FCC, CE, RCM, IC |
Free Cloud Console | Yes |
