Tachyon Networks TNA-303X 60GHz PTP/ PTMP
SKU: TNA-303X
Tachyon Networks TNA-303X 60GHz PTP/ PTMP
SKU: TNA-303X
£299.00
£358.80 inc. VAT
In Stock
Description

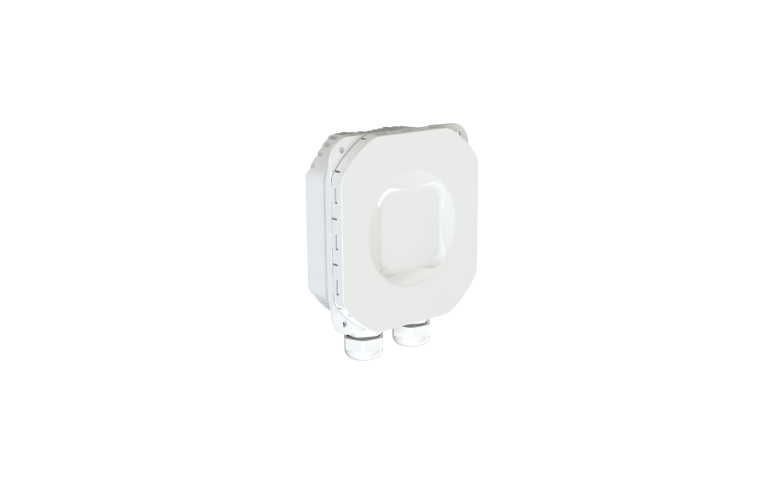

Tachyon Networks (TNA-303X) 60GHz PTP/PTMP radio
The newest addition to Tachyon's 60GHz product line. It supports the full unlicensed 60GHz band and is completely compatible with the existing TNA models. The base unit features 90° of beam-forming coverage and can be paired with an antenna kit (sold separately) to convert the radio from a wide beam-steering device to a highly directional one.
Interference free60Ghz band allows for virtually interference free connectivity and increased performance | Fibre-like Speeds2 Gbps+ achievable and distances of up to 8km+ (antenna kit dependent) without trenching, permits, or licenses. | Greater Spectrum AvailabilitySupports the full 60GHz band, including channels 5 and 6 (57-71 GHz), enabling longer links and increased co-location opportunities. | AffordableThe low cost of the TNA-300 series product family, combined with high subscriber density and quick installation, greatly decreases total cost of ownership for service providers. |
Quick Facts:
- The modular design and small form-factor of the TNA-303X simplifies inventory & installation, and is fully compatible with the existing TNA-301 and 302 models.
- The TNA-303X has 1 x 2.5G port (active PoE in), 1 x 1G port with PoE out.
- All TNA models support the full 60GHz band, including channels 5 and 6 (57-71 GHz), enabling longer links and increased co-location opportunities.
- The 1G ethernet port can be used as an "any"-band failover option, or to power accessories such as surveillance cameras.
Specification
| PTP/PTMP Specification | |
| Antenna | Base antenna: 16 dBi 3D beamforming phased array with +/- 45° azimuth (90° total) and +/- 25° elevation (50° total). Beam size is: 30° azimuth x 30° elevation. Single linear polarization. (Optional additional antennas for long range coverage) |
| Dimensions | Height: 5" / 13cm, Width: 5" / 12 cm, Depth: 2” / 5.5cm |
| Duplex | TDD |
| Encryption | AES 256 + GCMP |
| Frequency/ channels | Full band: 57-71 GHz: channels: 1-6 Half channels: 1-11 (see notes on support site about half channel support) |
| Interfaces | 1 x 2.5G ethernet, 1 x 1G ethernet |
| Max power consumption | 17W without PoE out being used, and 41W with PoE out being used |
| Max stations/ AP | Up to 32 stations |
| Mounting Options | Pole or wall mountable via mounting backplate |
| Operating Modes | Station, Access Point (software configurable). |
| Operating Temperature | -30°C - 55°C |
| Power | Input: Active PoE 38-57VDC (passive injector included) Output: On 1G port: passive PoE out w/max .5A |
| Weight | 425g |
