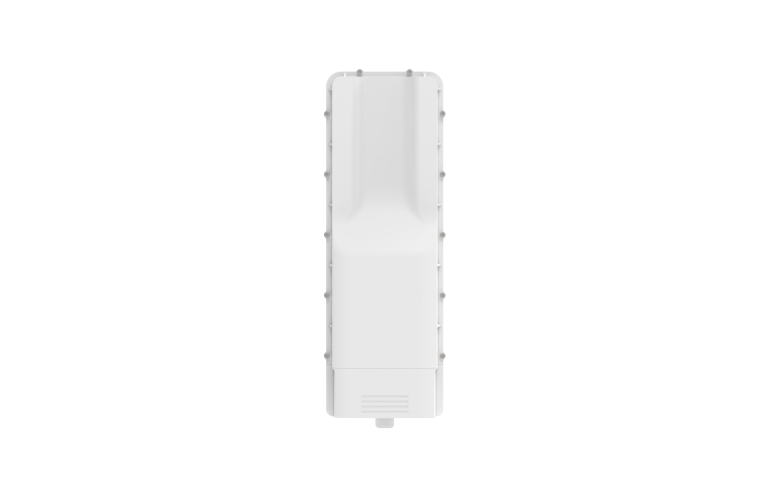

Tachyon Networks TNA-301 60GHz PTMP (120 degrees)

SKU: TNA-301

£325.00 £390.00 inc. VAT

Select Quantity:

In Stock

Tags: Tachyon Networks, TNA-301, 60Ghz, Bridge, Wireless, Wifi, PTP, PTMP, Point-to-Multipoint, Access Point, Base station

Tachyon Networks TNA-301 Datasheet

Description

Tachyon Networks (TNA-301) 60GHz PTMP radio

Virtually interference free for increased performance

2 Gbps+ achievable, perfect for high speed internet

Supports the full 60GHz band, including channels 5 and 6 (57-71 GHz), reducing congestion

Auto alignment with beam forming antennas,decreasing installation times

Supports an industry-leading number of clients per sector with 32 clients, uses beamforming for easy aiming & installation, and enables multi-gigabit speeds with the 2.5G ethernet port.

An additional 1G passive PoE-out port allows the TNA device to power accessory devices, such as a security camera.

Specification

Access Point Specification
Operating Temperature	-30°C - 60°C
PTP/PTMP Specification
Antenna	20 dBi 3D beamforming phased array with +/- 60° azimuth (120° total) and +/- 25° elevation (50° total). Beam size is: 23° azimuth x 12° elevation. Antenna polarization: Vertical
Dimensions	Height: 11" / 28cm, Width: 4" / 10.2 cm, Depth: 2" / 5.1cm
Duplex	TDD
Frequency/ channels	Full band: 57-71 GHz Channels: 1-6 Half channels: 1-11
Interfaces	1 x 2.5G ethernet, 1 x 1G ethernet, & 1 DC input screw terminal
Max power consumption	17W without PoE out being used, and 41W with PoE out being used
Max stations/ AP	Up to 32 stations

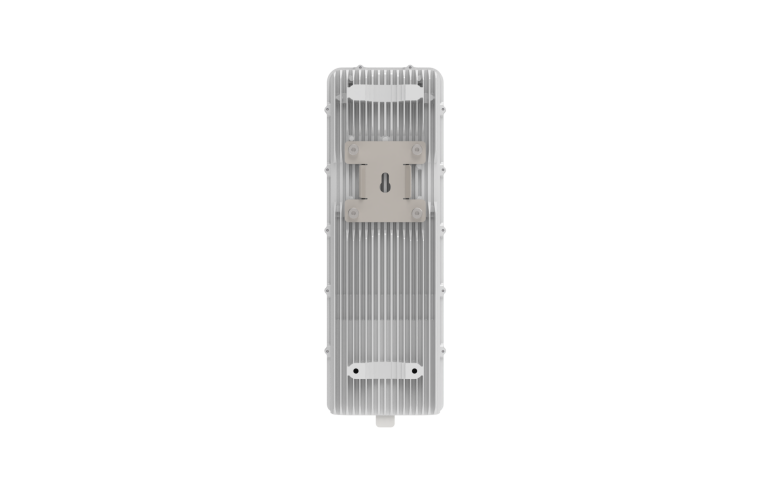

Mounting Options	Pole or wall mountable via mounting backplate
Operating Modes	Station, Access Point (software configurable). Default mode for the TNA-302 is station, and access point for the TNA-301 model.
Power	Input: Passive PoE 38-52V or via DC input screw terminal Devices support 2 or 4 pair power, expecting positive on 4/5 and negative on 7/8 Output: On 1G port: passive PoE out w/max .5A
TX Power	40 EIRP
Weight	695 g
