Ligowave DLB 5-20AC PTP/PTMP
SKU: LigoDLB-5-20ac

Ligowave DLB 5-20AC PTP/PTMP

SKU: LigoDLB-5-20ac

£134.20 £161.04 inc. VAT
In Stock
Tags: Ligowave, LigoDLB-5-20ac, 5Ghz, Bridge, Wireless, Wifi, Ptp, Point-to-Point
Ligowave DLB-5-20ac Datasheet

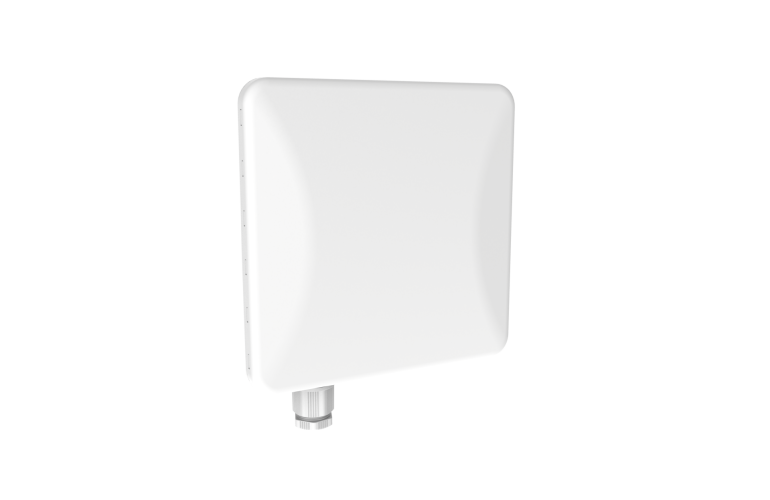

Ligowave DLB-5-20ac Point-to-Point Bridge Unit


500+ Mbps mid-range wireless device

500+ Mbps throughput - a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of ash memory the, LigoDLBac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation - 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLBac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time

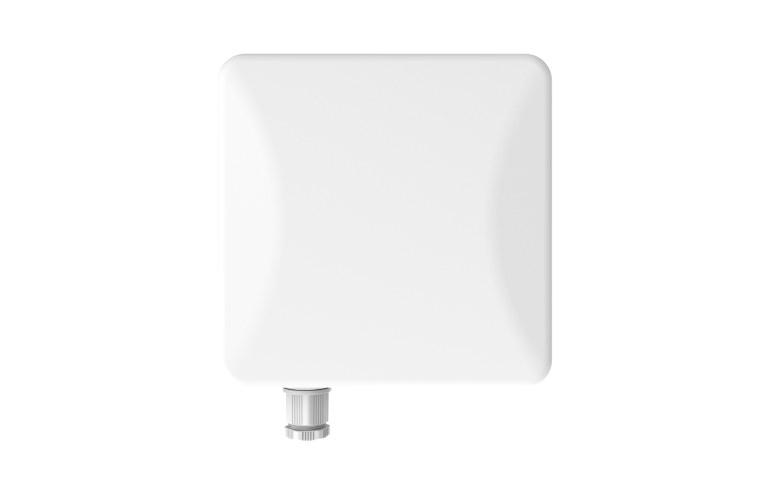

Small form factor

The shape of the enclosure is now smaller, lighter but retains the IP-66 weather protection rating. Smaller packaging reduces freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion-resistant.

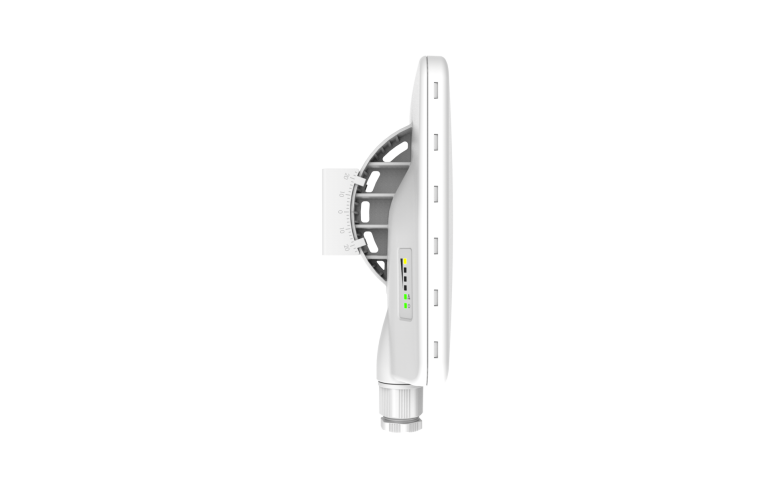

Innovative mounting bracket

The adjustable mounting bracket is very easy to assemble and install. It consists of two easy to connect parts that allow tilting the device up and down when installing on a pole.

LigoWave OS

LigoWave OS contains all of the essential features for establishing fast, strong, and reliable PTMP networks. The LigoWave OS includes IPv6 Bridge & Router Support, SSDP & Bonjour Device Discovery Options, Flexible Traffic Shaping, DHCP Option 82, and more. The user interface is built on HTML5 with responsive design

Access Point Specification
Radio Chains / Streams 5GHz: 2x2
Antennas Integrated dual-polarized Directional Panel Antenna Gain 20dBi
Data Rates 802.11ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30Mbps 802.11ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65Mbps
5GHz 5GHz models: 5.150 - 5.850GHz (FCC 5.150 - 5.250 and 5.725 - 5.850GHz) (Country Dependent)
Physical Interface 10/100/1000 Base-T, RJ45
PoE 24 VDC passive PoE (AC to 24 VDC adapter is included in the package)
Power Consumption 10W
Indoor / Outdoor Rating Outdoor
Dimension (W x D x H) 216mm (8.5 ‘’), 184mm (7.2 ‘’), 80mm (3.1 ‘’
Weight 413g (0.91lb)
Operating Temperature 40°C (-40°F) ~ +65°C (+149°F)
Certifications FCC/IC/C
