Ruckus Unleashed H510 802.11ac Wave 2 Wi-Fi AP and Switch for Dense Client Environments
SKU: H510-U

Ruckus Unleashed H510 802.11ac Wave 2 Wi-Fi AP and Switch for Dense Client Environments

SKU: H510-U
£242.25 £290.70 inc. VAT
Out Of Stock
Tags: Ruckus, H510, Access Point, Wireless, Unleashed, Indoor, Hospitality
Ruckus H510 Datasheet

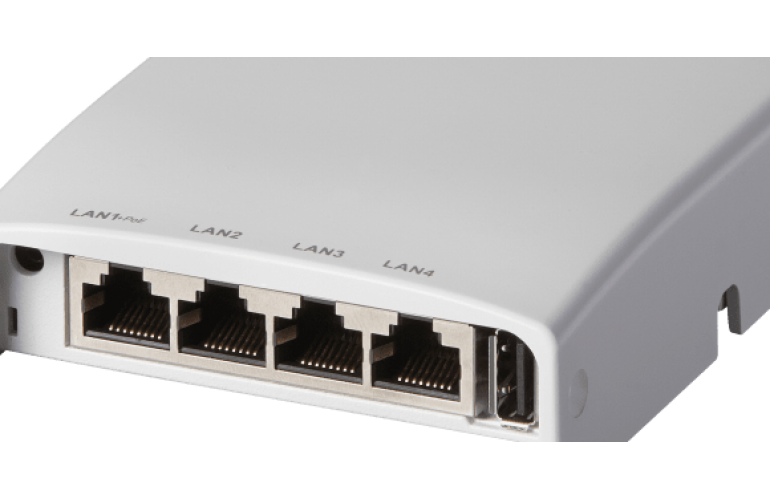

Wall-Mounted H510 802.11ac Wave 2 Wi-Fi AP and Switch for Dense Client Environments

In hotels, apartment buildings, and other multi-dwelling structures, wireless connectivity can carry a hefty price tag. You need to connect a wide range of wired devices—IPTV set-top boxes, IP phones, networked minibars, and more—while delivering a great wireless experience.

The Ruckus H510 wall-mounted access point and switch makes it easy to meet the most demanding in-room connectivity requirements without breaking the bank. It features patented Ruckus technologies to deliver the industry’s highest-performing Wi-Fi, combined with four-ports of Gigabit Ethernet—all in a sleek, low-profile design that can be discretely installed over standard electrical outlets.

Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.


Great All-In-One

great in-room Wi-Fi and enable converged IP services with 802.11ac Wave 2 speed and a built-in 4-port Gigabit Ethernet switch.

Stunning Wi-Fi Performance

Extends coverage with patented BeamFlex+TM adaptive antenna technology while mitigating interference by utilizing multi-directional antenna patterns.

Multiple Management Options

Manage the H510 from the cloud, with on-premises physical/virtual appliances, or without a controller.

Get Optimal Throughput

ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.

Serve More Devices

Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing non-Wave 2 device performance.

Support More Services

Multiple SSIDs and switch ports help support services such as VoIP, IPTV, and high-speed Internet access and in-room device connectivity.

Existing Switches and Cables

Designed to operate on existing PoE switches and CAT 5e cabling to minimize costly upgrades.

More Than Wi-Fi

Enhance your network with Cloudpath security and management software, SPoT real-time Wi-Fi location engine and analytics software, and SCI network analytics.

Access Point Specification
Radio Chains / Streams 2x2 SU-MIMO 2x2 MU-MIMO
Antennas 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) · 802.11n: 6.5Mbps to 300Mbps (MCS0 to MCS15) · 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps · 802.11b: 11, 5.5, 2 and 1 Mbps
Data Rates 2x2:2
2.4GHz 802.11 b/g/n (max rate: 300Mbps)
5GHz 802.11 a/b/g/n/ac (max rate: 867 Mbps) Wave 2, MU-MIMO
Physical Interface · 1 x 1GbE port, RJ-45 · 4 x 1GbE ports, one PoE-out
PoE 802.3af
Power Consumption 802.3af · 12.18W
Indoor / Outdoor Rating Indoor

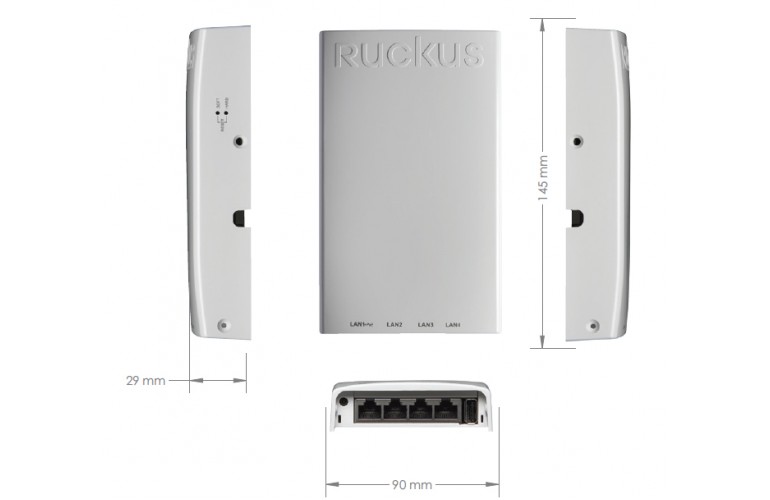

Dimension (W x D x H) 90 mm (W) x 171 mm (L), 29 mm (H)
Weight 210g (0.46lbs)
Operating Temperature 0°C (32°F) - 40°C (104°F)
Certifications - Wi-Fi CERTIFIED™ a, b, g, n, ac · Passpoint®, Vantage
Zero Config Plug-n-Play Ruckus Unleashed
Wireless Mesh No
