Ruckus R650 802.11ax Wifi 6 Indoor Access Point
SKU: R650

Ruckus R650 802.11ax Wifi 6 Indoor Access Point

SKU: R650
£925.00 £1,110.00 inc. VAT
In Stock
Tags: Ruckus, R650, 802.11ax, WIFI6, Access Point, Wireless, Unleashed, Indoor
Ruckus R650 Datasheet

Ruckus R650


Indoor Wi-Fi 6 (802.11ax) 4x4:4 WiFi Access Point with 2.5Gbps backhaul and 6 spatial streams.

Benefits

Stunning Wi-Fi performance


Mitigate interference and extend coverage with patented BeamFlex®+ adaptive antenna technology utilising several directional antenna patterns

Serve more devices


Connect more devices simultaneously with six MUMIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance.

Converged access point


Allow customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in BLE and Zigbee, and also expanding to any future wireless technologies.

Automate optimal throughput


ChannelFly® dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.

Multiple management options


Manage the R650 from the cloud, with on-premises physical/virtual appliances, or without a controller.

Better mesh networking


Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create selfforming, self-healing mesh networks.

More than Wi-Fi


Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath® security and onboarding sooftware SPoT Wi-Fi locationing engine, and SCI network analytics.

Wi-Fi capacity requirements in o࠿FH buildings, classrooms, and retail venues are rapidly raising due to increase in Wi-Fi connected devices, non-Wi-Fi IoT devices and bandwidth-hungry Applications

The RUCKUS® R650 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers increased capacity, improved coverage and performance in dense environments. The R650 is our mid-range dual-band, dual-concurrent AP that supports six spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz). The R650 supports peak data rates of up to 2974 Mbps and efficiently manages up to 512 clients connections. Furthermore, 2.5GbE Ethernet ensures the backhaul will not be a bo‚ttleneck for full use of available Wi-Fi capacity.

Also, wireless requirements within enterprises are expanding beyond Wi-Fi with BLE, Zigbee and many other non-Wi-Fi wireless technologies resulting in creation of network silos. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolioo is equipped to solve these challenges.

The R650 has built-in IoT radios with onboard BLE and Zigbee c-apabilities. In addition the R650 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the pluggable IoT module.

The R650 is packed with Ruckus patented technologies in addition to Wi-Fi 6 features such as OFDMA, MU-MIMO and TWT. The R650 is ideal for medium-density deployments such as office buildings, classrooms, libraries and retail venues.

The R650 Wi-Fi 6 AP incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.

  • BeamFlex+ Antennas: Extended coverage and optimised throughput with patented multi-directional antennas and radio patterns
  • ChannelFly: Improved throughput with dynamically changing the channels to use least congested channel
  • Ruckus Ultra-High-Density Technology Suite: Dramatically improved network performance with technologies such as Airtime Decongestion, Transient Client Management etc.

Whether you are deploying ten or ten thousand APs, the R650 is also easy to manage through Ruckus’ physical and virtual management options.

Access Point Specification
Radio Chains / Streams 4x4:4 (5GHz) 2x2:2 (2.4GHz)
Antennas Up to 3dBi
Data Rates 802.11ax: 4 to 2400 Mbps 802.11ac: 6.5 to 1732 Mbps 802.11n: 6.5 to 600 Mbps 802.11a/g: 6 to 54 Mbps 802.11b: 1 to 11 Mbps
2.4GHz 802.11 b/g/n/ax (max rate: 574Mbps)
5GHz 802.11 a/b/g/n/ac/ax (max rate: 2400 Mbps)

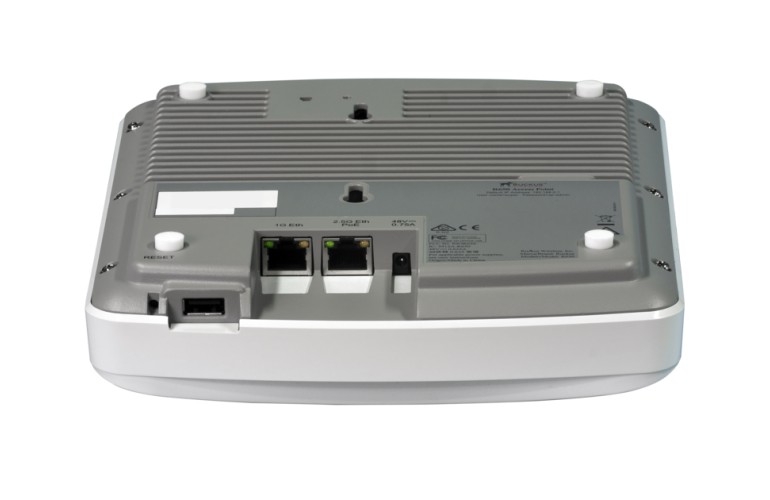

Physical Interface One 2.5Gbps Ethernet port and one 1Gbps Ethernet port Power over Ethernet (802.3af/at) with Category 5/5e/6 cable 1 USB 2.0 port, Type A
PoE 802.3af (reduced function) /802.3at (full function)
Power Consumption 802.3af - 12.25W 802.3at - 21.59W DC Input 12VDC - 21.46W (full function)
Indoor / Outdoor Rating Indoor
Dimension (W x D x H) 22.4(L) x 19.4(W) x 4.7(H) cm
Weight 0.854kg (1.88lbs)
Operating Temperature 0°C (32°F) to 50°C (122°F)
Certifications Wi-Fi CERTIFIED™ a, b, g, n, ac, ax Passpoint®, Vantage
Wireless Mesh Yes - SmartMesh™ wireless meshing technology
