Open Mesh A62 Universal Tri-Band 802.11ac Wave 2 Cloud-Managed WiFi Access Point
SKU: A62

Open Mesh A62 Universal Tri-Band 802.11ac Wave 2 Cloud-Managed WiFi Access Point

SKU: A62
£299.00 £358.80 inc. VAT
This product has been discontinued. Consider this alternative:

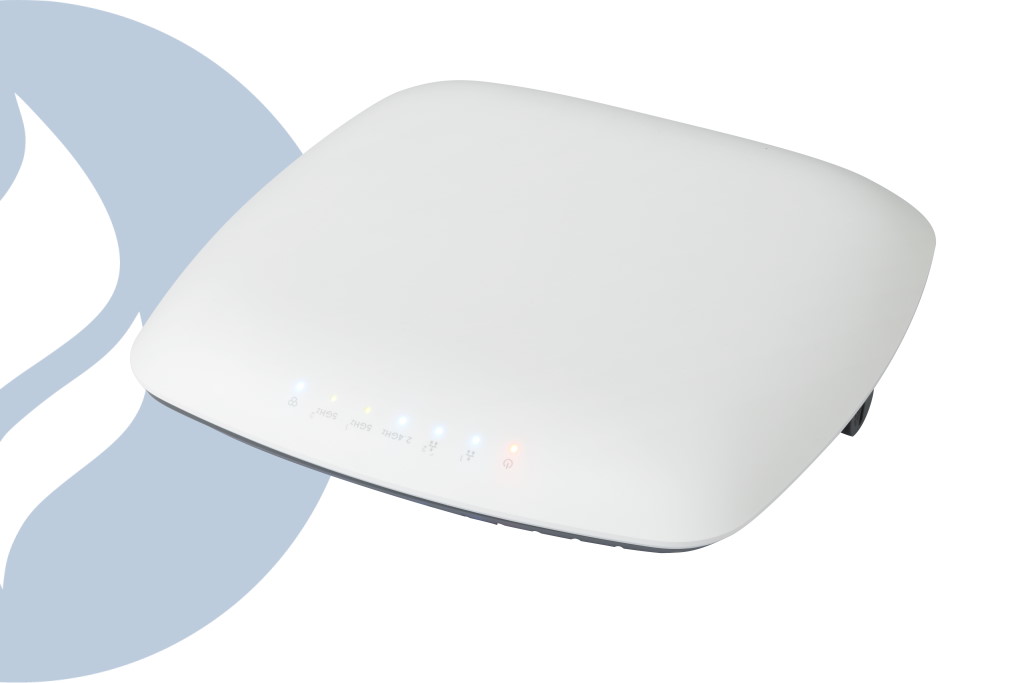

Plasma Cloud PA2200 Tri-band Access Point
Plasma Cloud PA2200 Tri-band Access Point View product »
Tags: Open Mesh, A62, Tri-Band, 802.11ac, Wave 2, Cloud-Managed, Wifi, Access Point


Plasma Cloud has developed firmware to support most of the Open Mesh access point range including the OM2P, OM2P-LC, OM2P-HS, OM5P-AC, MR1750, A40, A60, A42 and A62.

Take a look at our guide to see how to migrate your network settings, including an over the air unlock and reflash process - How to migrate your cloudtrax network to Plasma Cloud

A62: Wave 2 Cloud-managed WiFi

The A62 is a universal tri-band 802.11ac Wave 2 cloud-managed WiFi access point with simultaneous 2.4GHz and dual 5GHz radios. The A62 is our most powerful access point and supports the highest volume of simultaneous users. Install the A62 almost anywhere, indoors and out, with the included universal installation kit.

The A62 includes hardware watchdog, two Gigabit Ethernet ports and a USB port. It can be powered by standard 802.3af or passive 18-24V PoE.

Water and dust resistant, the A Series can be set on a desktop, mounted to an ethernet wall plate (EU, UK, US), installed on a wall or T-rail ceiling or fastened to an outdoor wall or pole. A universal installation kit is included for deployments almost anywhere.



The A62 is cloud managed and includes a free license for CloudTrax, Open Mesh’s cloud-based network controller. Deploy access points in minutes and build, manage and monitor your network from anywhere.




Highlights

High Performance
High Performance

The A62 is a tri-band 802.11ac Wave 2 access point, providing strong performance in dense environments.

Universal Installation
Universal Installation

The A Series was carefully designed to be installed almost anywhere. Mount the A Series indoors or out with the included universal installation kit.

Cloud Managed
Cloud Managed

Includes a license for CloudTrax, Open Mesh’s cloud-based network controller. No on-site server or controller required.

User Insight
User Insight

With device fingerprinting, you'll know who is on your network in terms of device operating system, name, bandwidth used and more.

Mesh Enabled
Mesh-enabled

Mesh technology enables access points to work together to form a self-organizing, self-healing wireless network.

Custom Brandable
Custom-Brandable

From CloudTrax to hardware, brand the Open Mesh solution as your own. Learn more.

Standard PoE
Standard PoE

The A62 is PoE only and can be powered with standard 802.3af PoE or passive 18-24V PoE. Bundle with a PoE injector or S Series switch.

Multiple SSIDs
Multiple  SSIDs

Multiple SSIDs allow you to broadcast up to four unique networks, some “public” and some “private.”

Your Brand
Your Brand

Custom-branded splash pages automatically scale to fit any device, or use Facebook Wi-Fi to let users check-in to your page before using the web for free.

Outage Alerts
Outage Alerts

Automated outage alerts by email if any access point goes down and doesn’t come back up within an hour.

Custom Authentication
Custom authentication

Authenticate users with WPA2 or WPA-Enterprise security; charge for access, use vouchers and connect to your hotel PMS system1.

Bandwidth Management
Bandwidth Management

Set upload and download caps on each user and block individual abusive devices to ensure there is enough bandwidth available for everyone.

Secure
Secure

Built-in firewall prevents users on the public network from seeing each other or your wired network by default.

Mobile Apps
Mobile Apps

Build, manage and monitor your networks from anywhere with free iOS and Android applications.



Notes:
  • The A Series is PoE only and does not include a power supply. The A62 can be powered with standard 802.3af PoE or passive 18-24V PoE. Bundle with a PoE injector or S Series switch.
  • A Series access points are backwards compatible with OM2P and most later OM Series devices (requires firmware upgrade) and MR600 and later MR Series devices, so you can run them on the same network. The A Series will not mesh with OM5P, but can run on the same network.
  • In certain regions (primarily Europe), the third radio will be not be available because DFS bands are not yet enabled in the A62. DFS bands will be enabled in the second half of 2018 for all regions, enabling the third radio. Users in the US, Canada, Australia and New Zealand are not affected.



1 PMS integration is a partner service.
Access Point Specification
Antennas Internal: 2 dual-band, 2 single-band
Data Rates 300 + 867 + 867 Mbps
2.4GHz 2 stream, 802.11 b/g/n (max rate: 300 Mbps)
5GHz 2 stream, 802.11 a/b/g/n/ac (max rate: 867 Mbps) + 2 stream, 802.11 a/b/g/n/ac (max rate: 867 Mbps) Wave 2, MU-MIMO
Processor Qualcomm Dakota IPQ4019
Memory 256MB DRAM
Max Recommended Clients 75-150 per AP
Physical Interface 2 Gigabit Ethernet, 1 USB
PoE Standard 802.3af or Passive 18-24V (mode A, B, A+B)
Indoor / Outdoor Rating CE Marked for indoor/outdoor use, IP55
Dimension (W x D x H) 6.5" x 6.5" x 1.2" | .90Lbs
Operating Temperature -20 - 50 C
Zero Config Plug-n-Play Yes
Wireless Mesh Yes
Free Cloud Console Utility recommends you migrate your Open Mesh networks to Plasma Cloud
Free Mobile App Utility recommends you migrate your Open Mesh networks to Plasma Cloud
View compared products

Write a review

Please login or register to review

Open Mesh makes WiFi smarter and simpler. We help create powerful, easy-to-use wireless networks that automatically spread Internet connections throughout hotels, apartments, retail stores, restaurants, small and medium-sized businesses—and just about anywhere else.

The Open Mesh Series includes everything you need to deploy professional wireless networks across one site or thousands: a modular platform of access points and indoor and outdoor enclosures for easy, professional installation; CloudTrax, a free cloud-based network controller that can manage an unlimited number of access points and networks; and a global suite of power supplies and PoE solutions.
