Tachyon Networks TNA-303L-65 60GHz radio

SKU: TNA-303L-65

£169.00 £202.80 inc. VAT

Select Quantity:

In Stock

Tags: Tachyon Networks, TNA-303L-65, 60Ghz, Bridge, Wireless, Wifi, PTP, PTMP, Point-to-Multipoint, Access Point, Base station

Tachyon TNA-303L-65 datasheet

Description

Tachyon Networks (TNA-303L-65) 60GHz PTP radio

Use the TNA-300 series products to easily create point-to-point connections between buildings in urban environments, particularly for high bandwidth CCTV.

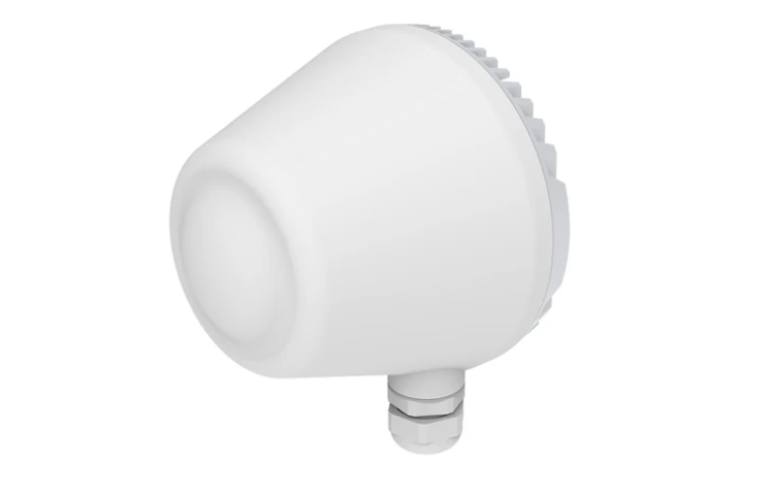

Ultra-compact design

Ultra-compact design which can blend into any surroundings and features extremely low wind loading.

Fibre-like Speeds

1 Gbps can be achieved and distances of up to 3+vkm (PTP) and 2+ km (PTMP) without trenching, permits, or licenses

Greater Spectrum Availability

support the full 60GHz band, including channels 5 and 6 (57-71 GHz), enabling longer links and increased co-location opportunities.

Best overall affordability

The low cost of the TNA-300 series product family, combined with high subscriber density and quick installation, greatly decreases total cost of ownership for service providers.

Supports an industry-leading number of clients per sector with 32 clients, uses beamforming for easy aiming & installation, and enables gigabit speeds with the 1G ethernet port.

Pole mount included
Management via web interface, SNMP v2 & v3, SNMP traps, & RESTful API (SSH available upon request)

Specification

Access Point Specification
Operating Temperature	-30°C - 55°C
PTP/PTMP Specification
Antenna	20 dBi 3D beamforming phased array with +/- 60° azimuth (120° total) and +/- 25° elevation (50° total). Beam size is: 23° azimuth x 12° elevation. Antenna polarization: Vertical
Dimensions	Height: 5" / 13cm, Width: 5" / 12 cm, Depth: 4” / 10cm,
Duplex	TDD
Frequency/ channels	Full band: 57-71 GHz: channels: 1-6 Half channels: 1-12 (see notes on support site about half channel support

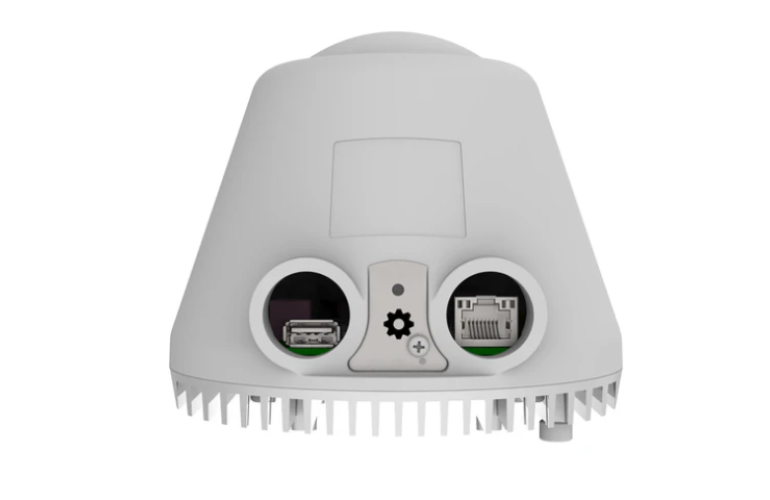

Interfaces	1x 1G ethernet, 1x USB Type-A for aiming
Max power consumption	15W
Max stations/ AP	Up to 32 stations
Mounting Options	Pole mount included
Operating Modes	Station, PTP (software configurable).
Power	Input: Active PoE 38-57VDC (passive injector included) Output: On 1G port: passive PoE out w/max .5A
TX Power	54dBm (regulatory dependent)
Weight	425 g
