Teltonika TRB500 5G Gateway
SKU: TRB500

Teltonika TRB500 5G Gateway

SKU: TRB500

£289.83 £347.80 inc. VAT
In Stock
Tags: Teltonika, TRB500, 5G, Mobile, Internet, Router, Gateway
Teltonika TRB500 Datasheet

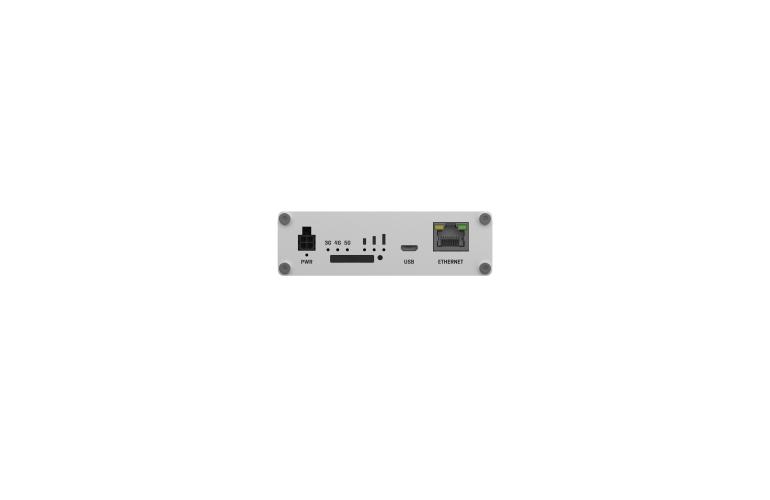

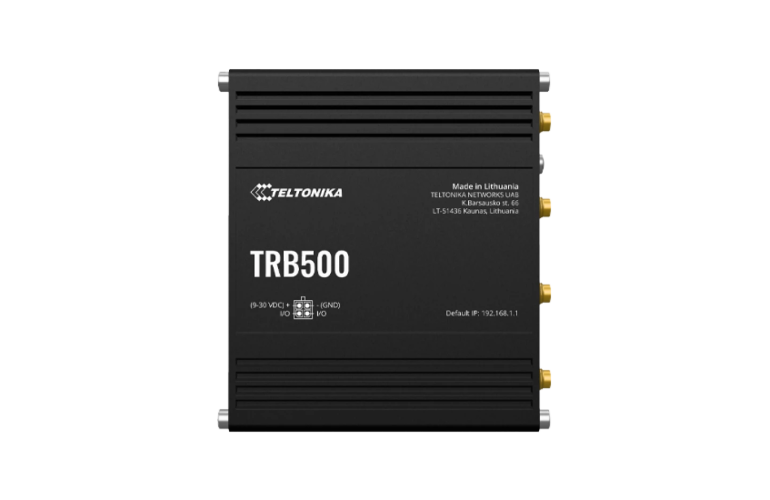

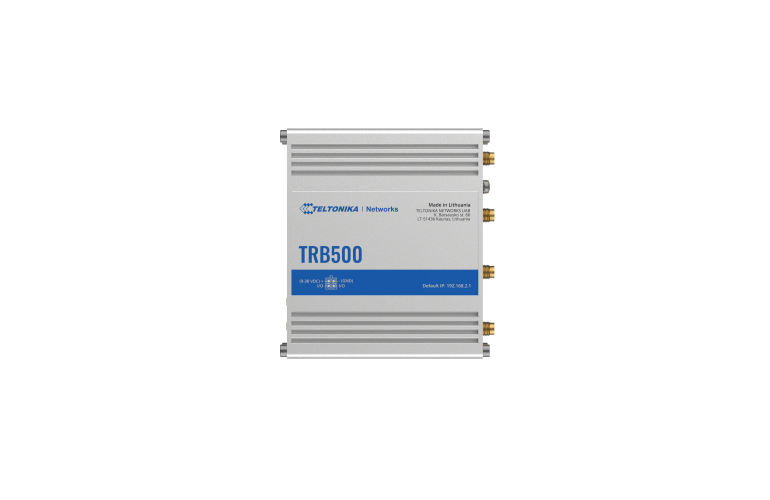

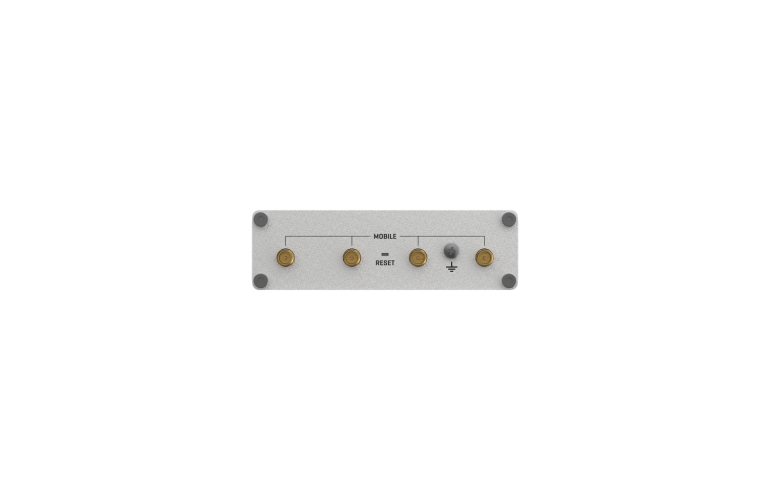

Teltonika TRB500



INDUSTRIAL 5G GATEWAY

TRB500 is a compact, energy-efficient 5G gateway for ultra-fast data transmission with ultra-low latency. Backward compatibility with 4G and 3G networks enables future-proofing solution infrastructures even in areas where 5G is not yet available.


5G

Ultra-high cellular speeds of up to 1 Gbps

SA & NSA

Supports both architectures to leverage the 5G infrastructure

COMPACTNESS

One of the smallest 5G gateways available in the market

FUTURE-PROOFING

Backward compatible with 4G (LTE CAT 20) and 3G network technologies


Network Router Specification
Dimensions 100 x 30 x 93,4 mm (H, W, D) Weight: 241 g
Ethernet 1 x ETH port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Mobile Module 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment Operating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30
Power Connector: 1 x 4-pin power Input voltage range: 9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max Power consumption: Idle: < 3 W, Max < 6 W
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
System Characteristics CPU: Single core ARM Cortex A7, 1.5 GHz RAM: 256 MB (128 MB available for userspace) FLASH storage: 512 MB (200 MB available for userspace)
View compared products

Write a review

Please login or register to review

Teltonika Networks is a rapidly growing technology company, manufacturing professional network connectivity equipment for international markets. Through long-term experience and research and development of industrial network devices for IoT and M2M communication, we have developed a wide portfolio of products for the most complex areas of Industry 4.0, Smart City, and Green Energy. Teltonika Networks controls every stage of the product development cycle, which enables us to respond quickly and flexibly to market needs and changes while ensuring reliability, security, and ease of use. As a part of Teltonika IoT Group, all our products are manufactured and assembled in a modern factory in Lithuania which allows us to ensure highest quality standards.
